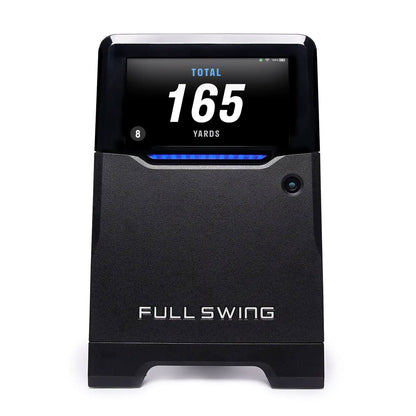

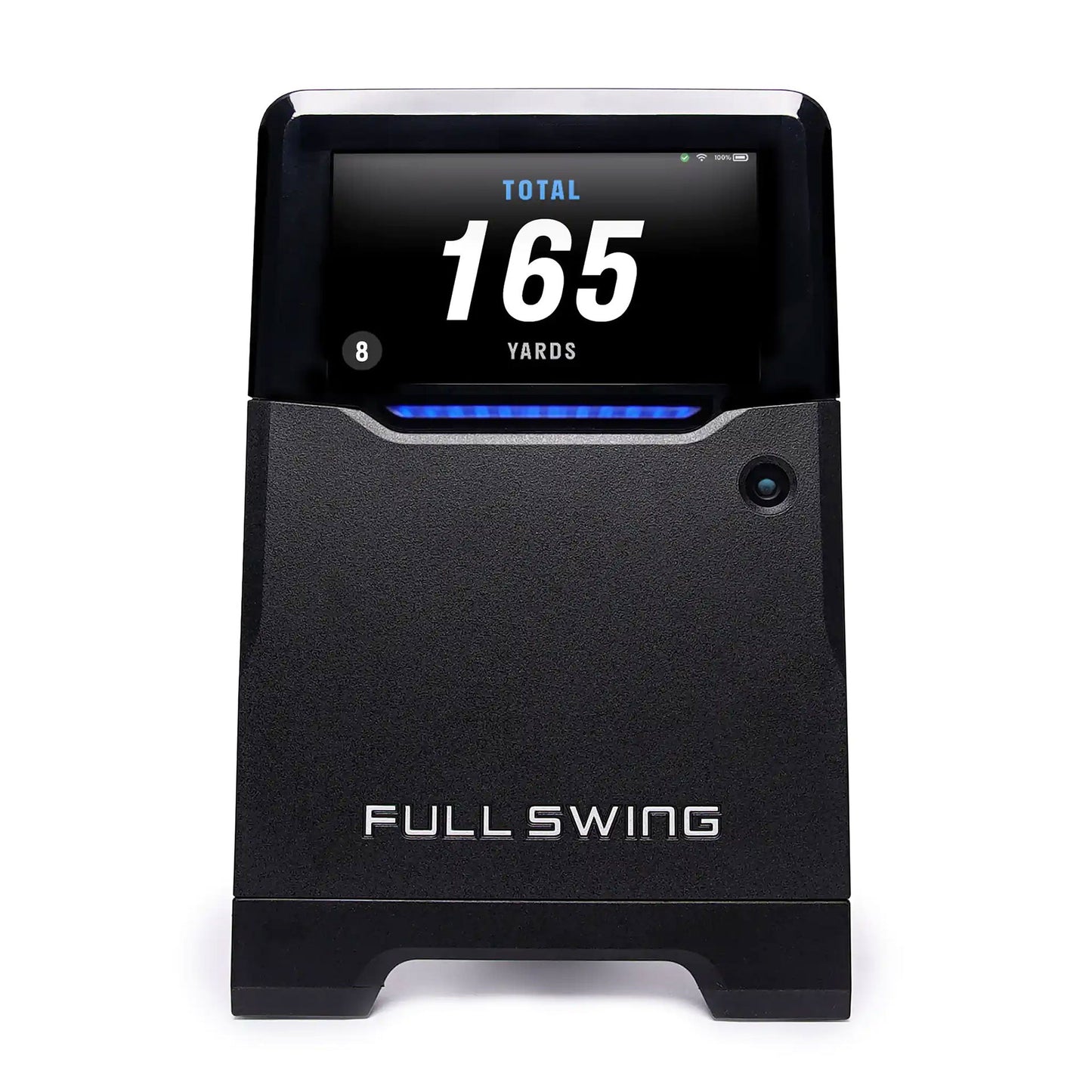

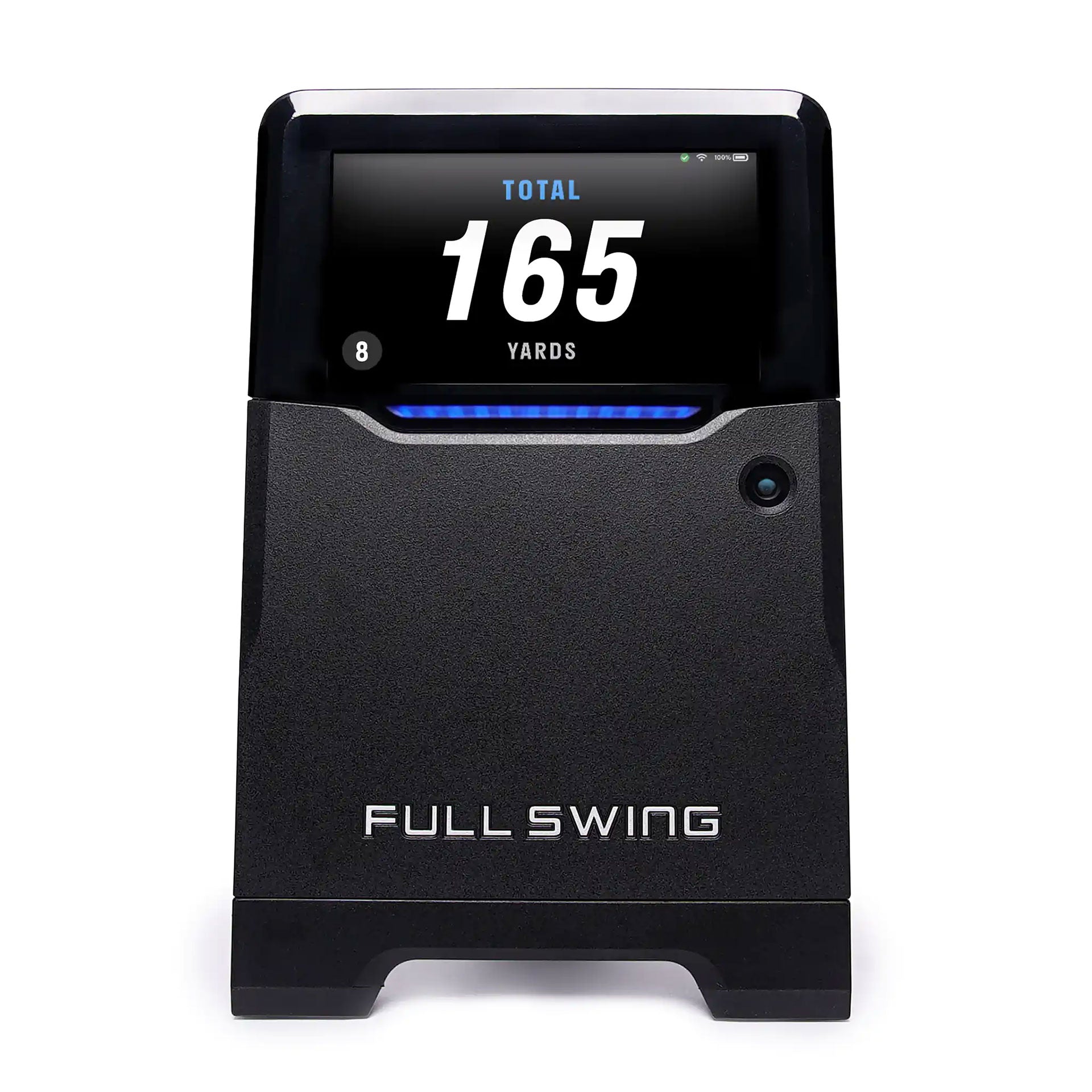

Full Swing KIT Launch Monitor

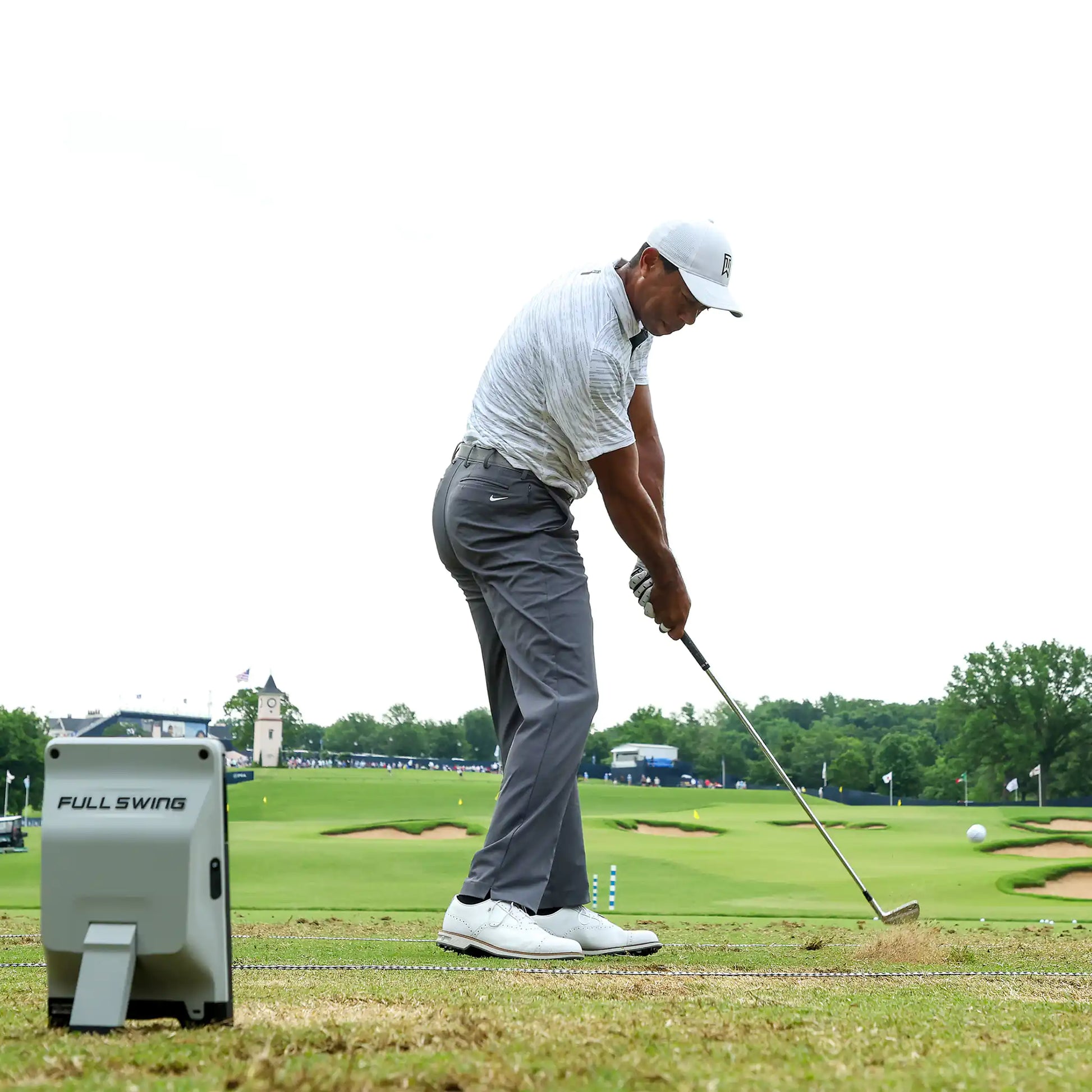

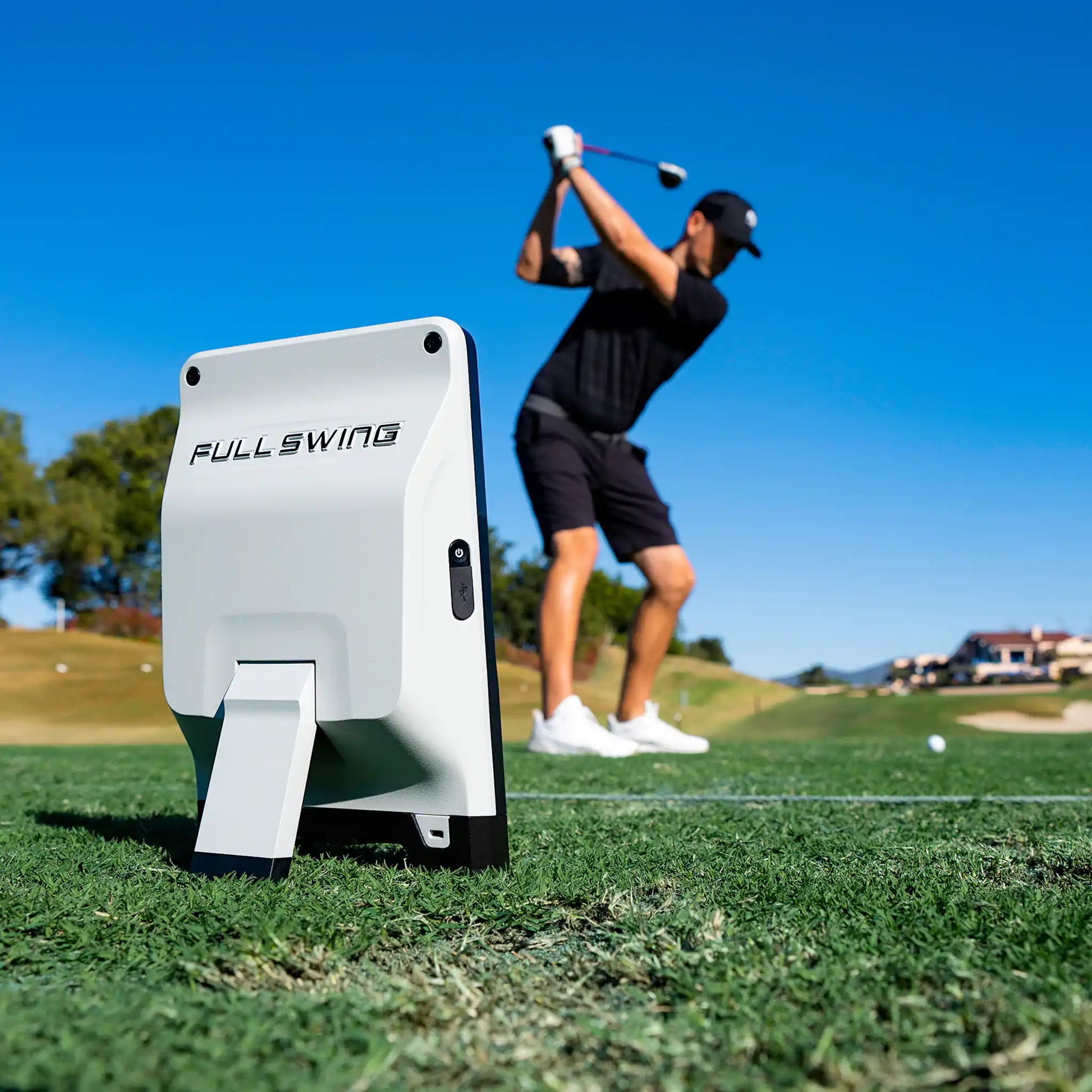

Fully charge the Full Swing KIT using the supplied USB-C charger, allowing approximately five hours for a complete charge. Download the Full Swing app, create or sign into your account, then press and hold the power button for two seconds and follow the app instructions to connect the monitor. Fully extend the rear support leg and position the KIT directly behind the golf ball, level with the hitting surface and aligned with your intended target line. For indoor simulator use, allow approximately eight to ten feet between the KIT and the ball, plus another eight to ten feet of ball flight between the ball and your impact screen or net. Keep the tracking area free from obstructions, select your preferred metrics or simulator software and begin your session.

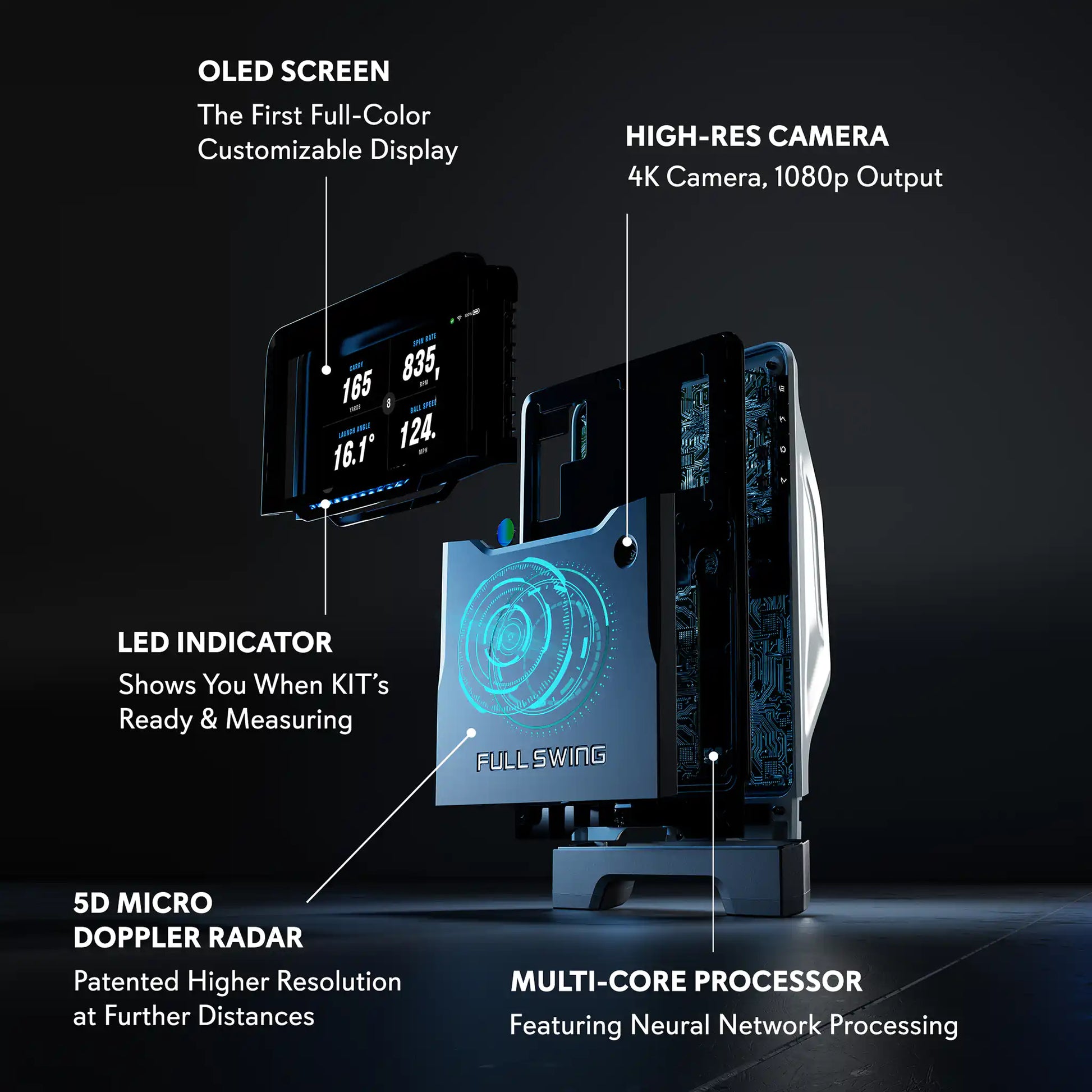

• Tracking technology: Patented 24 GHz dual-mode, machine-learning enhanced radar.
• Ball data: Carry, total distance, spin, launch, speed, apex and direction.
• Club data: Speed, path, attack, face angle, face-to-path and smash factor.

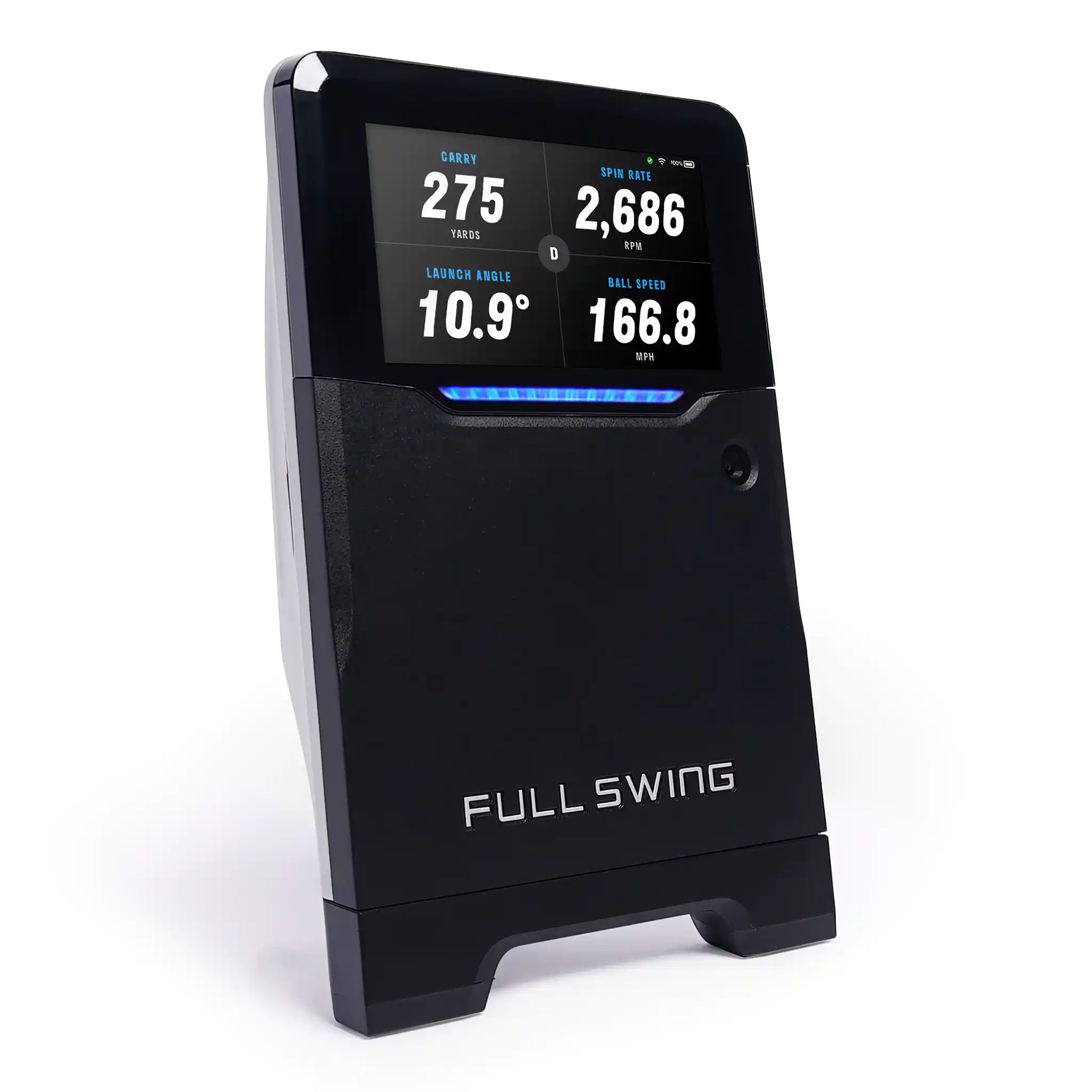

• Display: 5.3-inch ultra-bright, full-colour OLED screen.
• Display resolution: Full HD 1920 × 1080 with 16.7 million colours.
• Camera: Full HD 1080p video capture at 60 frames per second.
• Processor: Integrated dual-core A9 processor.
• Wi-Fi: Supports 802.11a, b, g, n and ac standards.
• Bluetooth: Bluetooth 5.0 BR, EDR and LE connectivity.
• Battery: Built-in 8,000 mAh rechargeable lithium-ion battery.
• Operating time: Approximately five hours, depending on usage conditions.
• Charging port: USB-C connection.
• Charger: 45W USB-C, supporting 110–240V and 50–60Hz.
• Charging cable: One-metre USB-C cable.
• Unit dimensions: 260mm high × 167mm wide × 59mm deep.

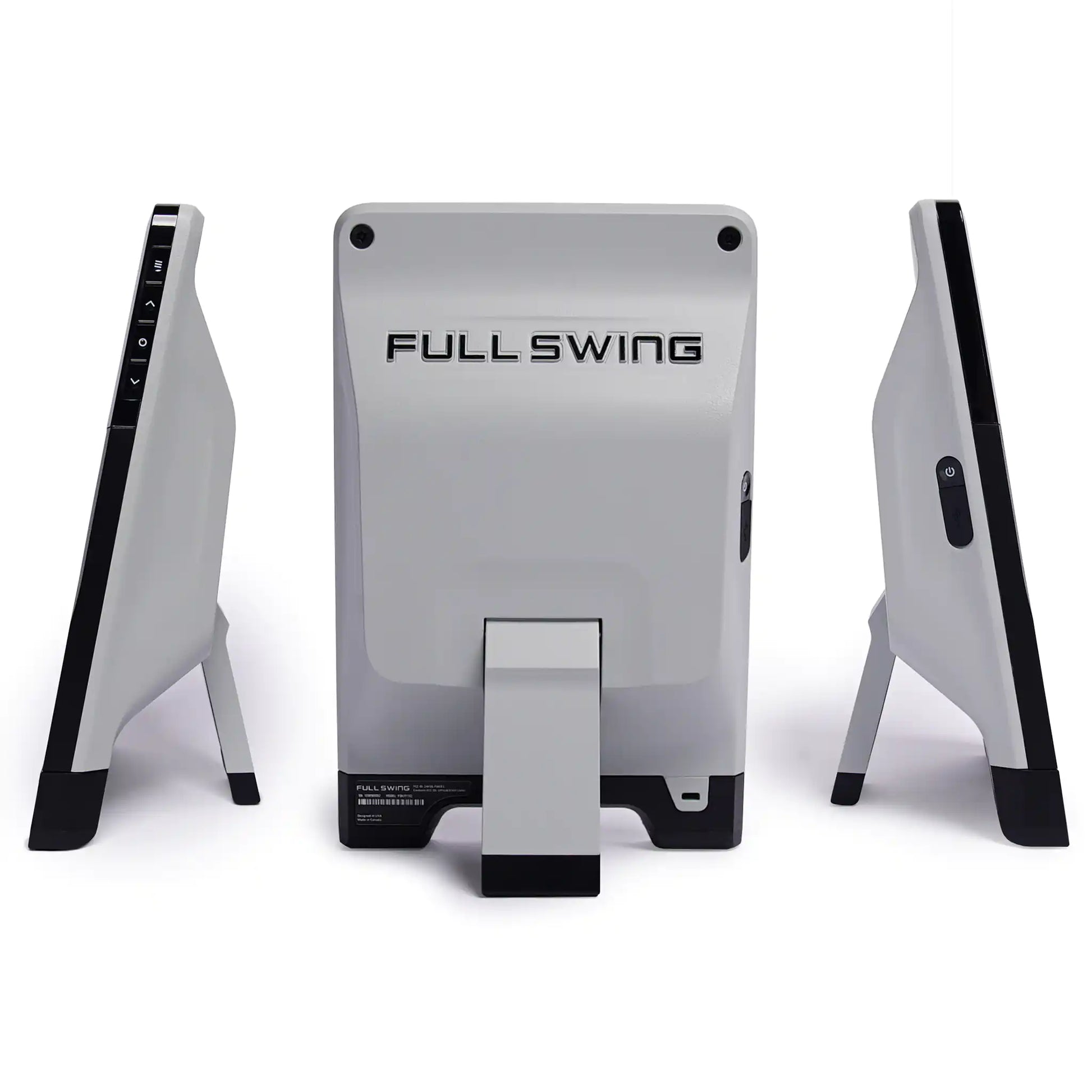

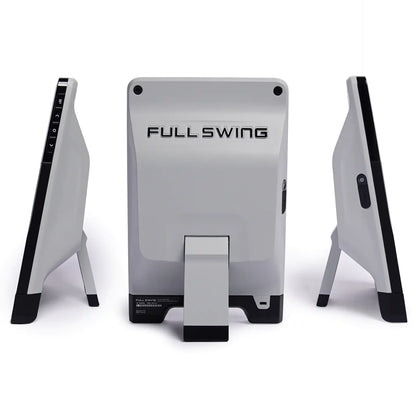

• Extended depth: Approximately 95mm with the support leg extended.
• Unit weight: Approximately 1.8kg.
• Case dimensions: 330mm long × 206mm wide × 98mm high.

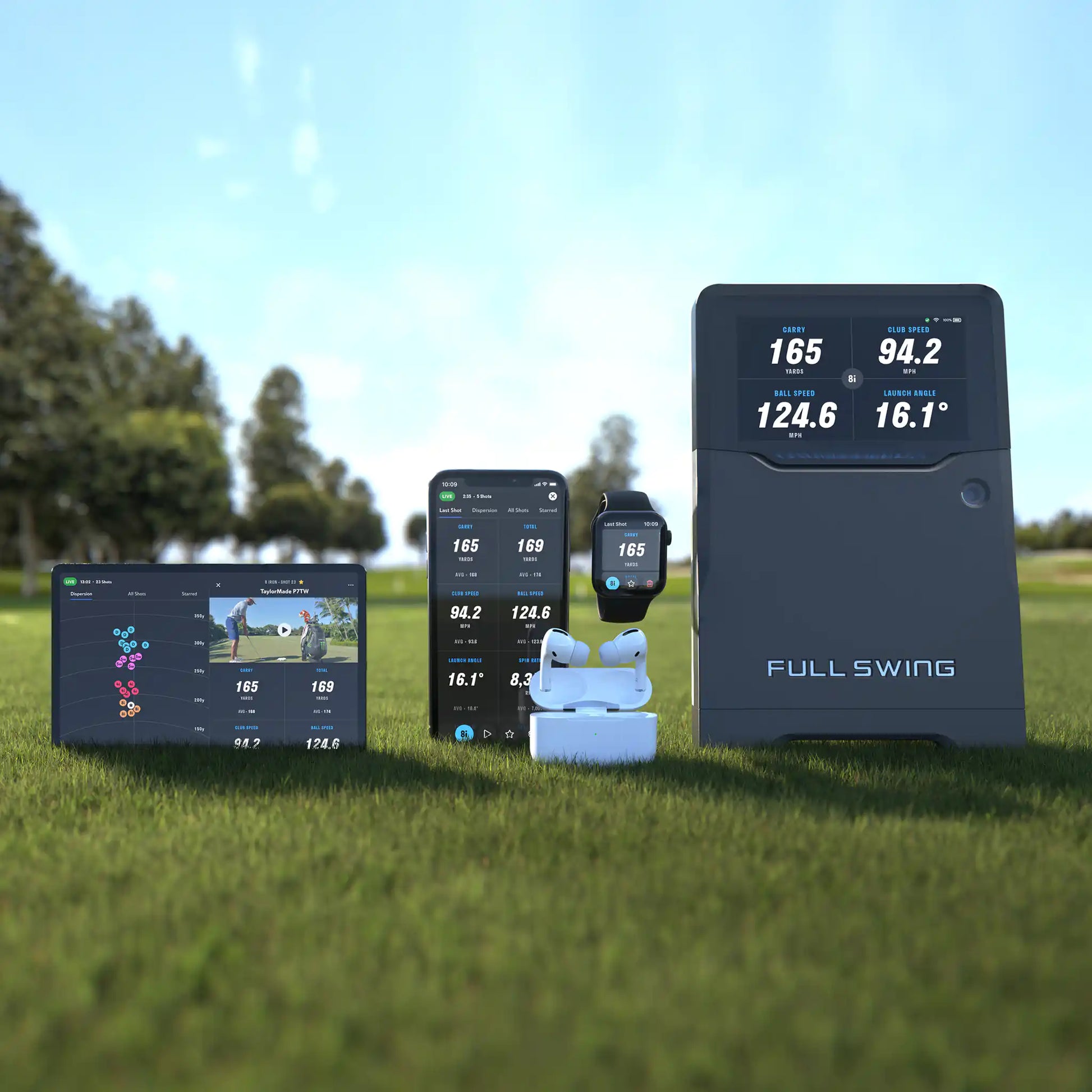

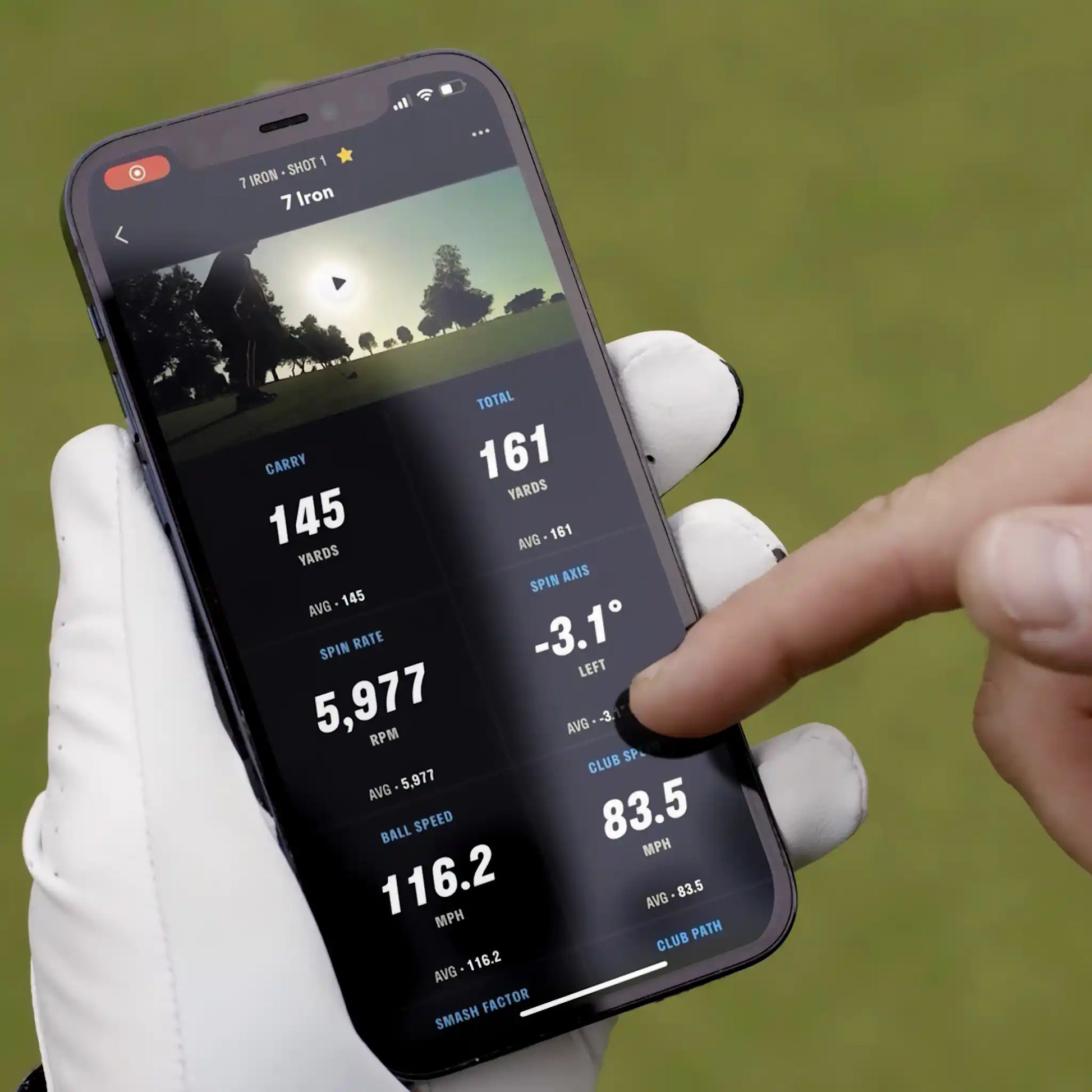

• Mobile app: Full Swing app for compatible iOS and Android devices.
• Simulator software: GSPro, E6 CONNECT and Full Swing Golf for KIT.
