SportScreen Vanish Series

SportScreen Vanish Series

£3,999.99 GBP
£0.00 GBP £3,999.99 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.
Model: Vanish 9
Retraction: Remote Control

Add Golf Simulators

View all

Add Hitting Mat

View all

Add Projector

View all
Bundle total: £3,999.99

Delivery Info

+

We offer delivery to many international countries with warehouses located in the USA, UK, Europe and China. For more details, please visit our Shipping policy page.

Setup Guide

+

Setting up the Vanish Sport Screen is a straightforward, step-by-step process that begins with preparation and mounting. First, unpack all components and check them against the contents list. Clear the chosen installation area, ensuring there is at least 30 cm of clearance behind the screen. Secure the universal mounting brackets to a solid structure, such as wall studs or ceiling joists. Once the brackets are fixed, assemble the aluminium roller tubes and fit these assemblies into the mounted brackets.

Next, attach the screens and configure the system. Fix the main screen, along with any optional side screens or ceiling baffles, to their respective rollers using the integrated hook-and-loop (Velcro-style) strips. For the motorised version, connect the power lead to a standard 110 V socket. The final key step is to pair the remote control with the motor and set the upper and lower stop positions so the screen automatically halts at the desired height. Once everything is connected and the limits are set, test the system thoroughly to confirm smooth, even operation.

Specification

+

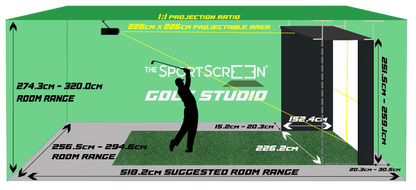

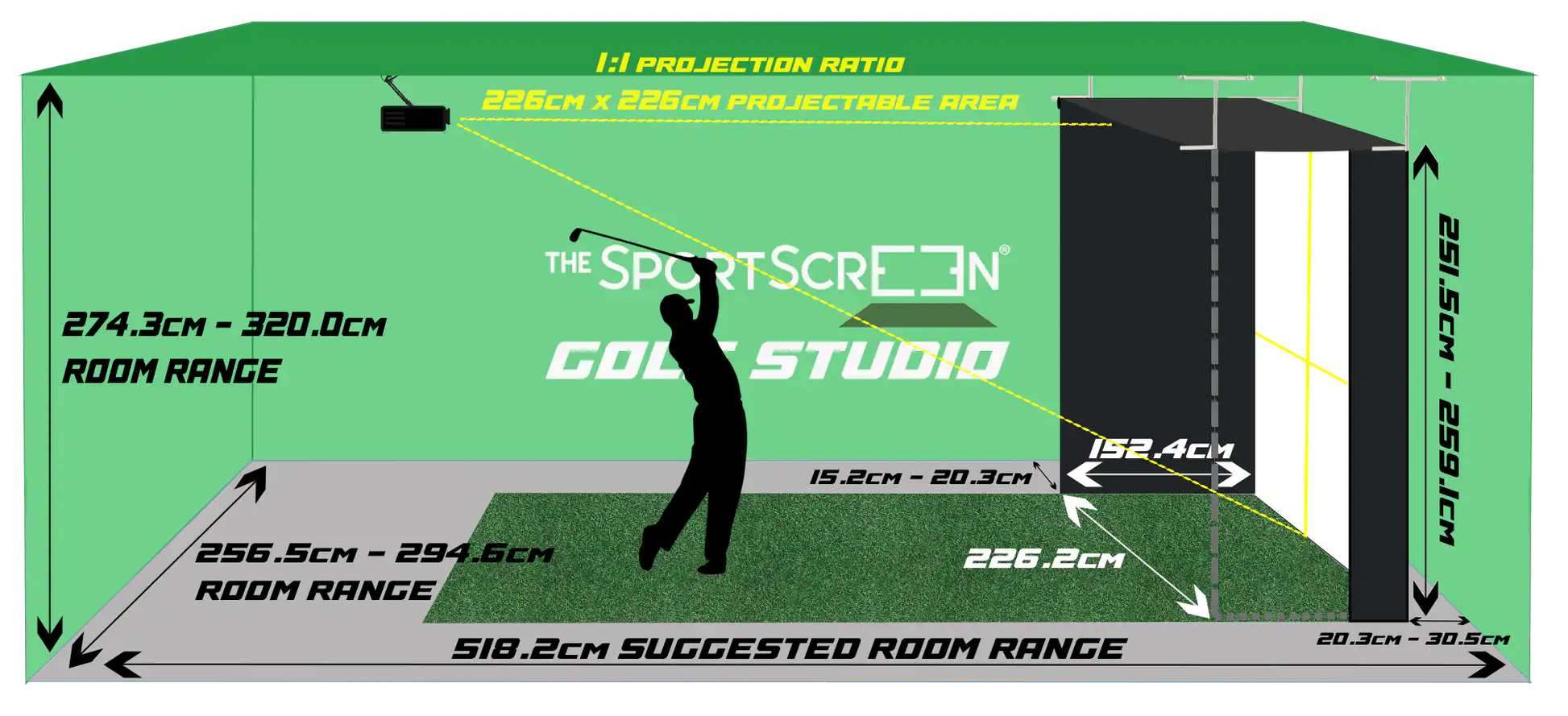

Vanish 9
• Width - 2.3 m (7"9' ft)
• Min Height - Adjustable
• Max Height - 2.6 m (8"6' ft)
• Depth - 1.5m (5"0' ft)
• Screen Ratio 1:1

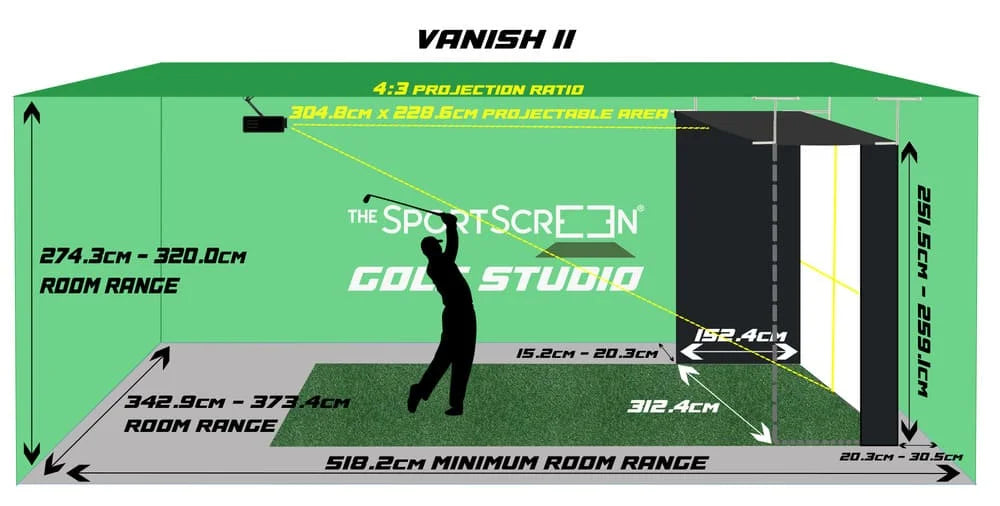

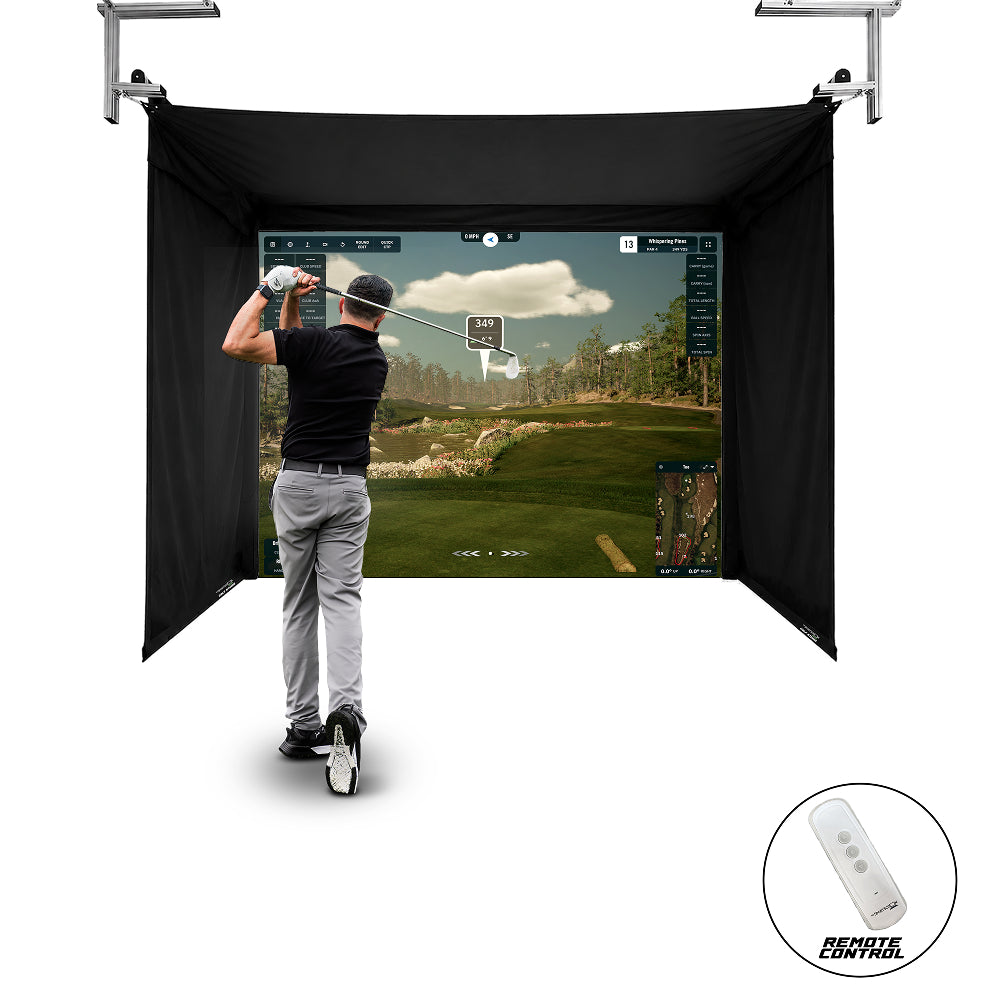

Vanish 11
• Width - 3.1 m (10"3' ft)
• Min Height - Adjustable
• Max Height - 2.6 m (8"6' ft)
• Depth - 1.5m (5"0' ft)
• Screen Ratio 4:3

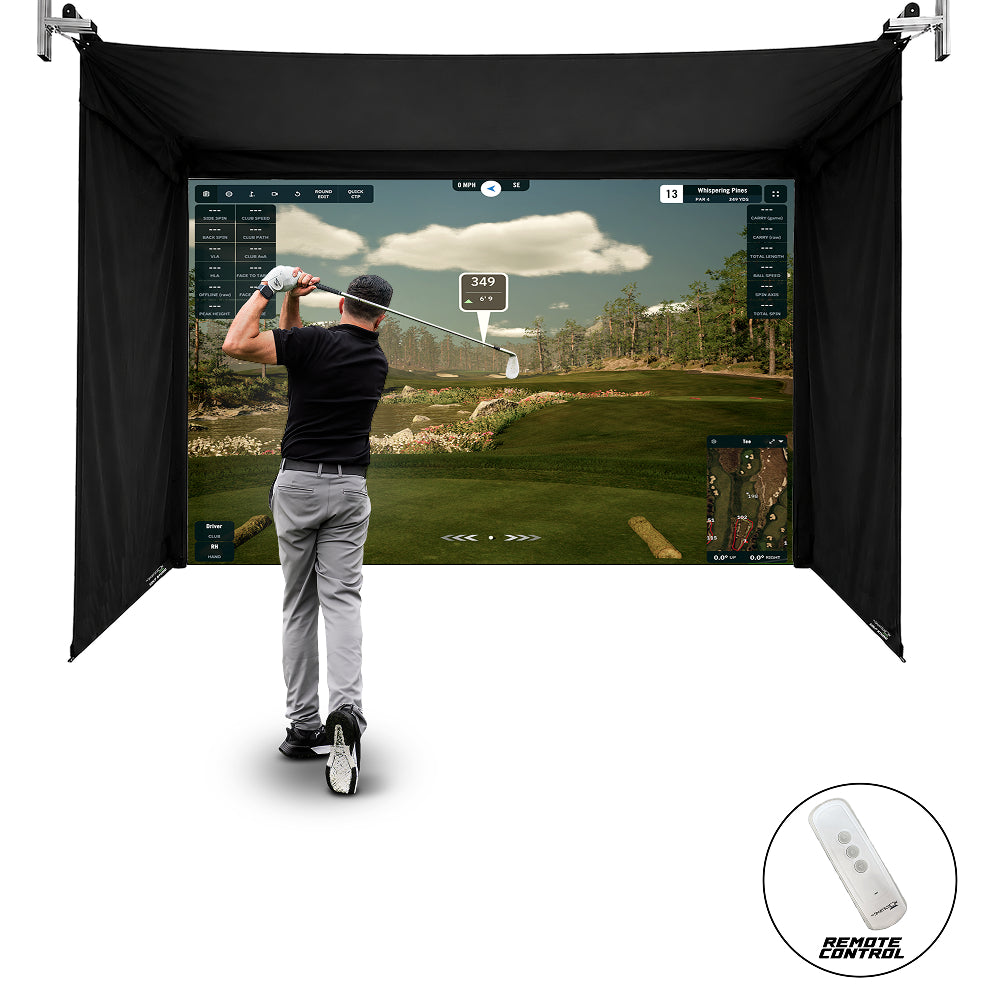

Vanish 13H
• Width - 3.7 m (12"3' ft)
• Min Height - Adjustable
• Max Height - 3 m (9"11' ft)
• Depth - 1.5m (5"0' ft)
• Screen Ratio 4:3

Vanish 16
• Width - 4.7 m (15"6' ft)
• Min Height - Adjustable
• Max Height - 2.6 m (8"6' ft)
• Depth - 1.5m (5"0' ft)
• Screen Ratio 16:9

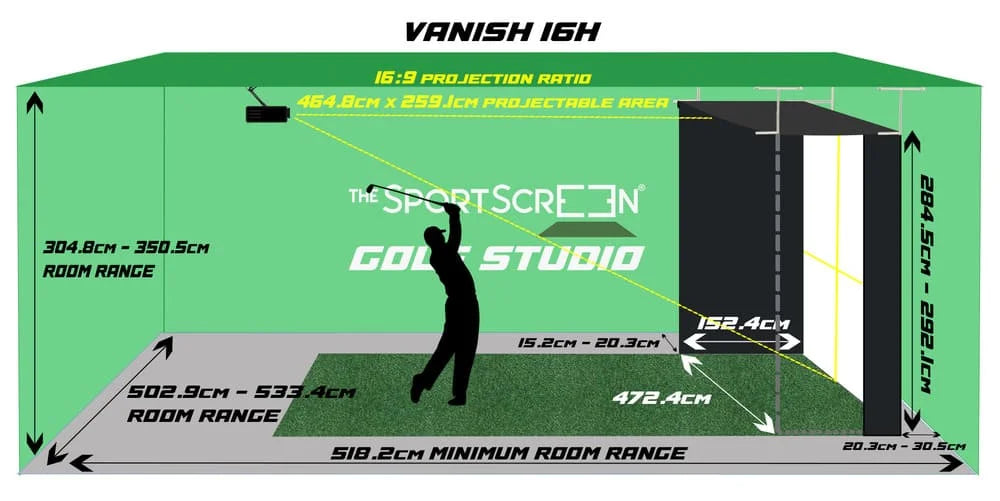

Vanish 16H
• Width - 4.7 m (15"6' ft)
• Min Height - Adjustable
• Max Height - 3 m (9"11' ft)
• Depth - 1.5m (5"0' ft)
• Screen Ratio 16:9

Please leave at least 30cm behind and 20cm to the side of the enclosure.

View full details

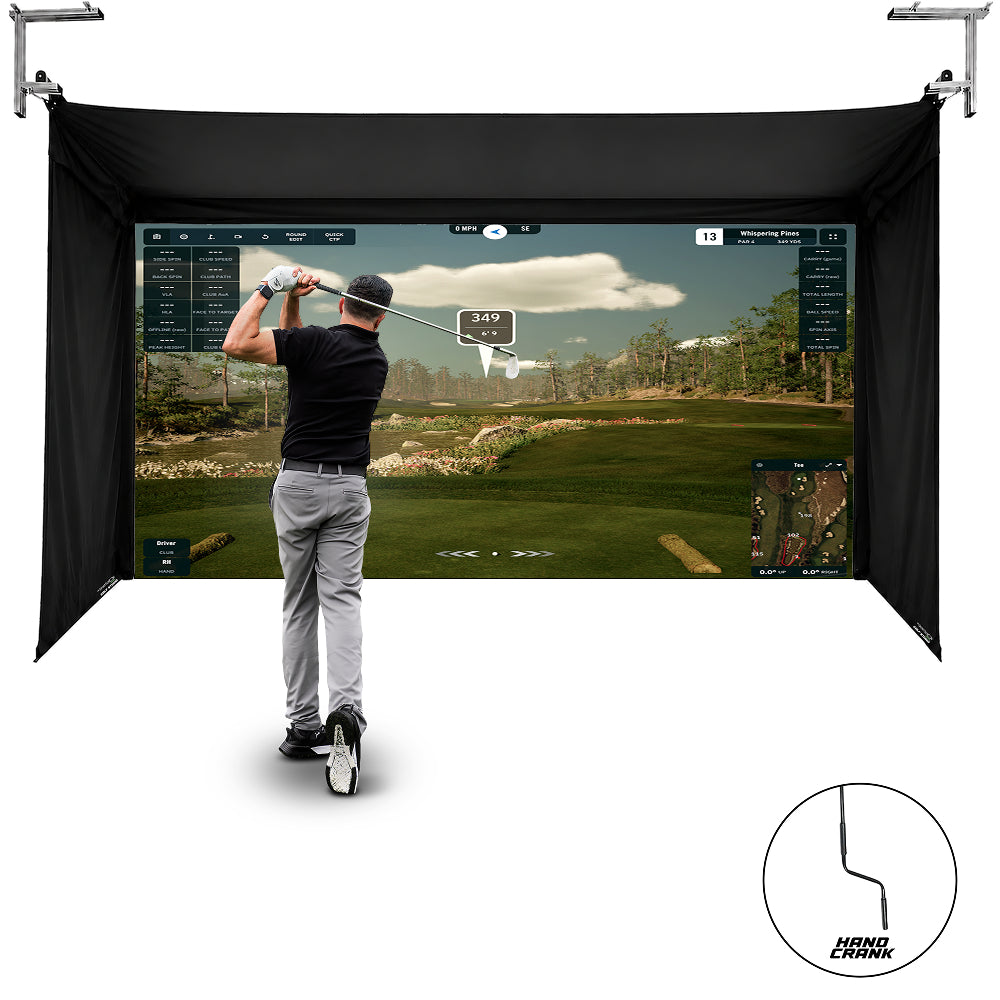

SportScreen Vanish Series

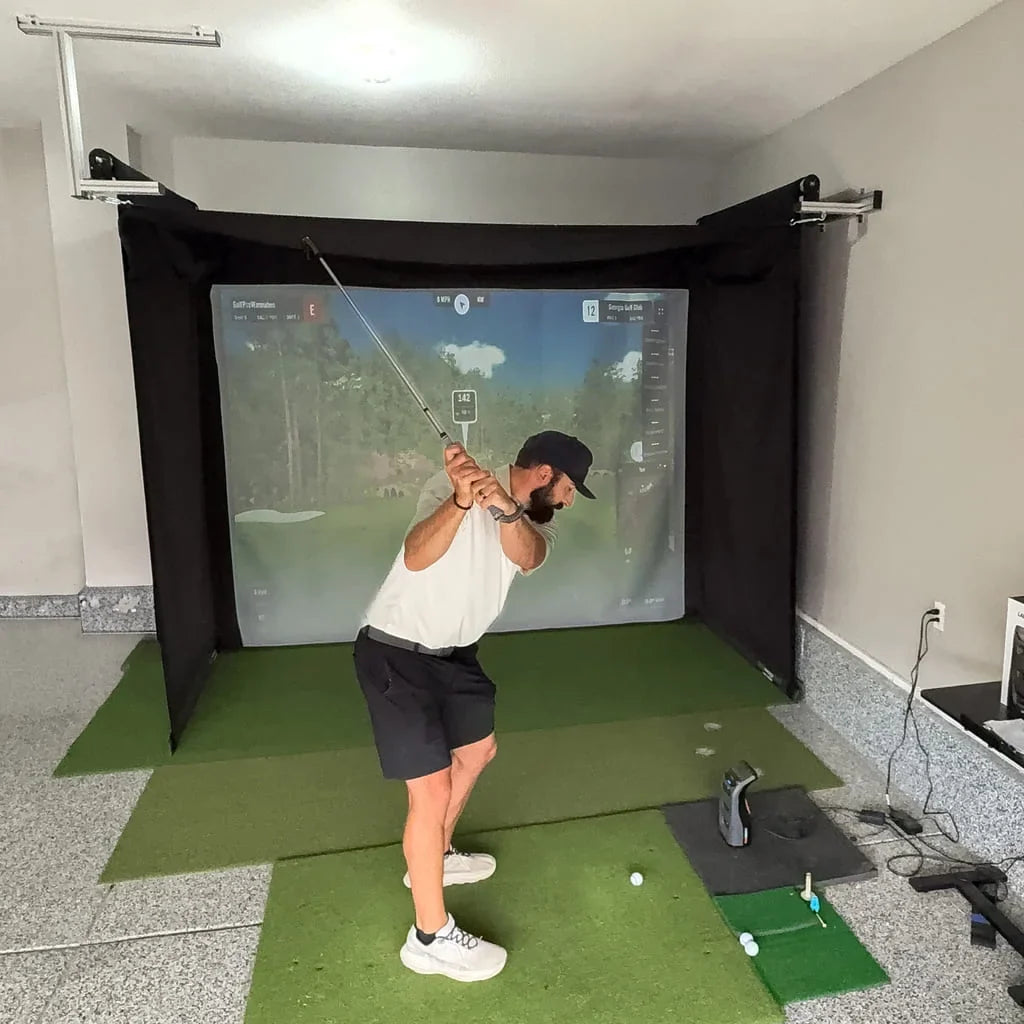

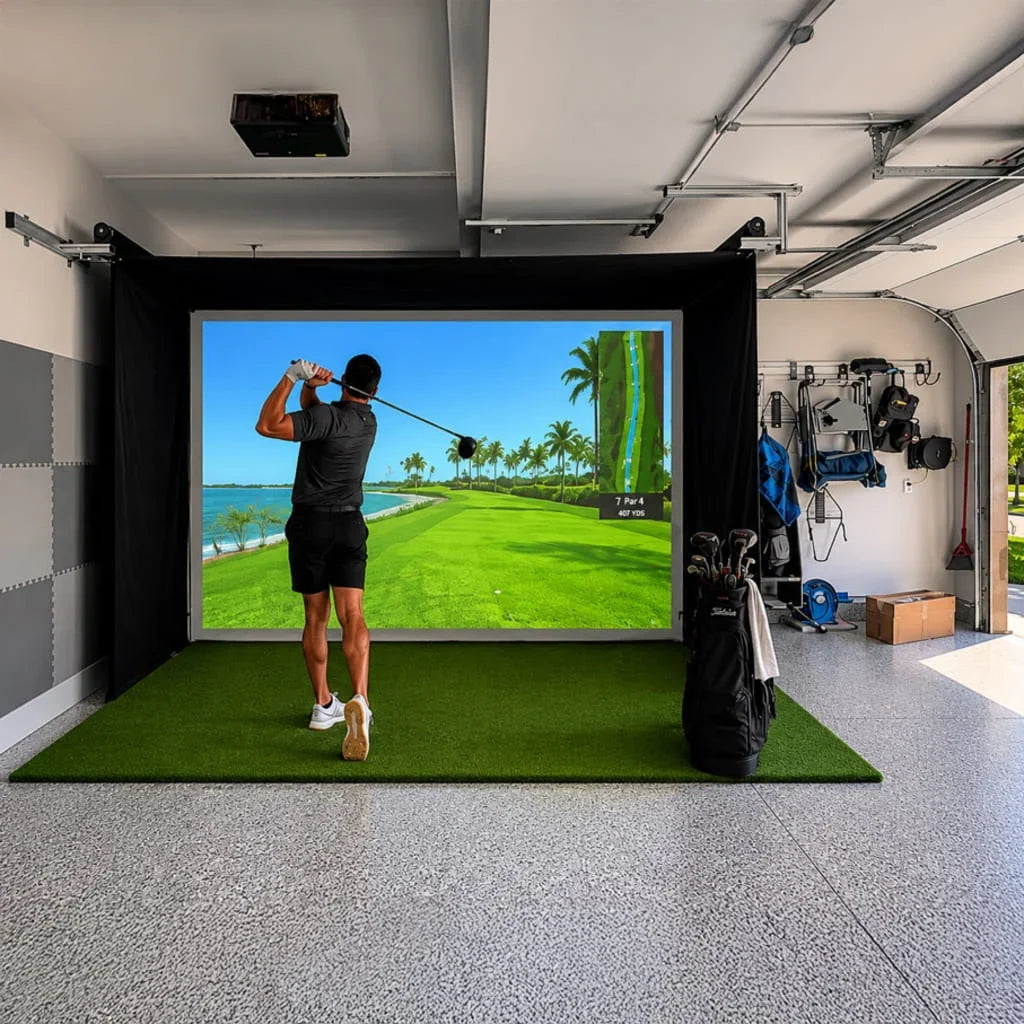

Transform your spare room into a sleek home golf studio with the Vanish Series golf enclosure. Roll it up to get your room back in seconds. Enjoy a clean, pro-level hitting bay that looks good in your home. More swings, no lost living space.

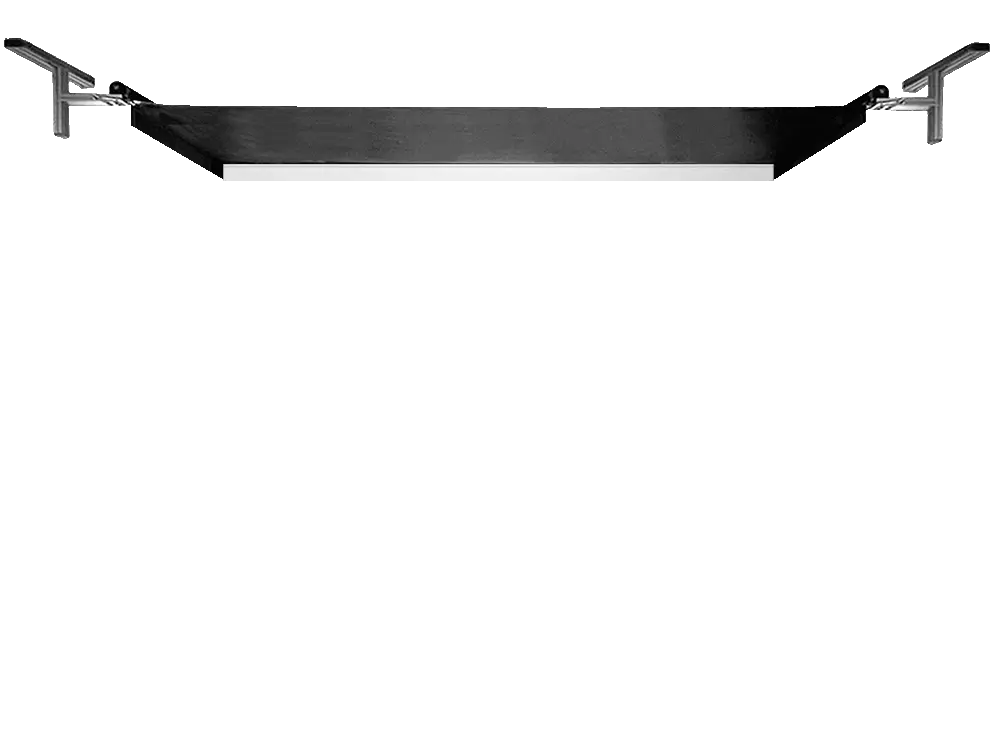

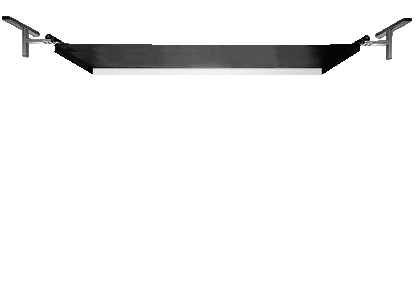

Retractable Golf Studio Design

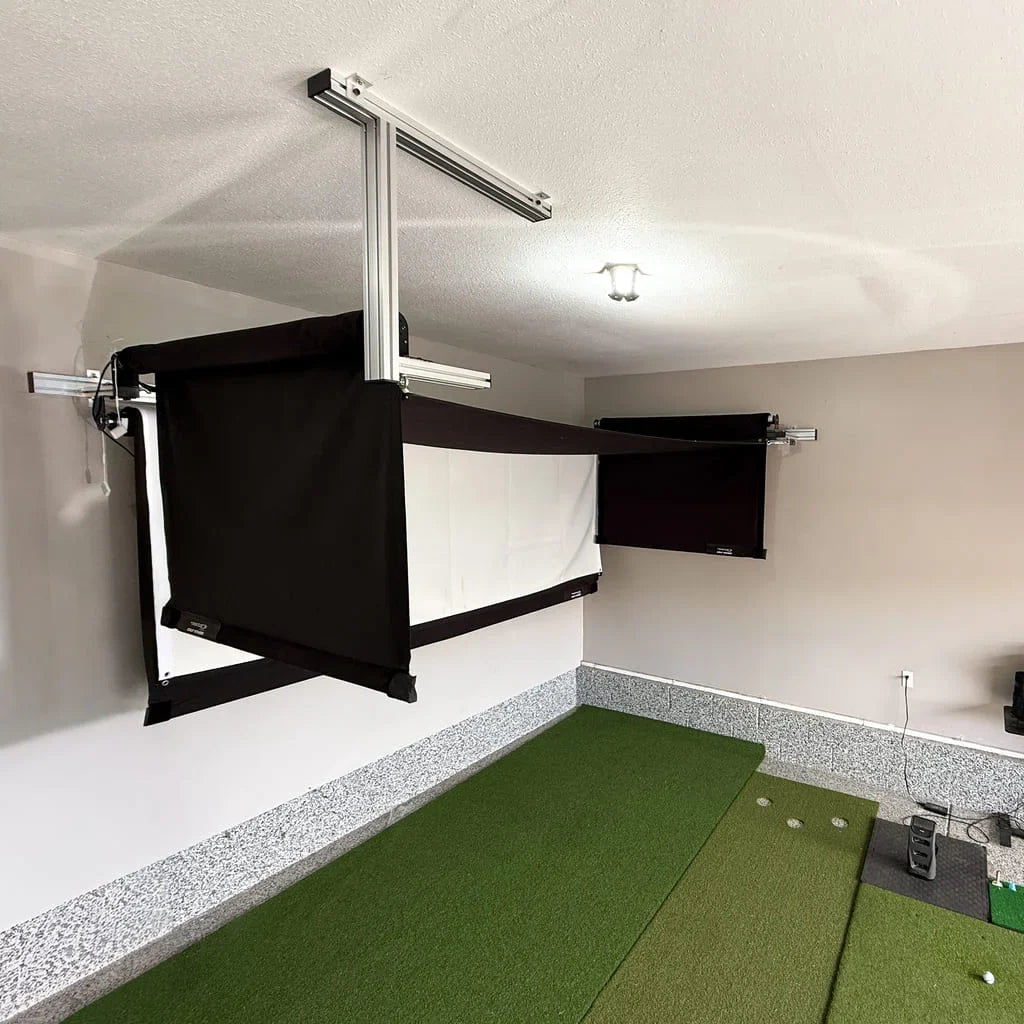

The Vanish Series enclosure features a sleek retractable system that allows you to roll the screen away when not in use. In seconds, your simulator space can return to a normal room, keeping your home clean and flexible.
  • Retractable screen rolls away neatly when not in use
  • Quickly switch between golf simulator and open room

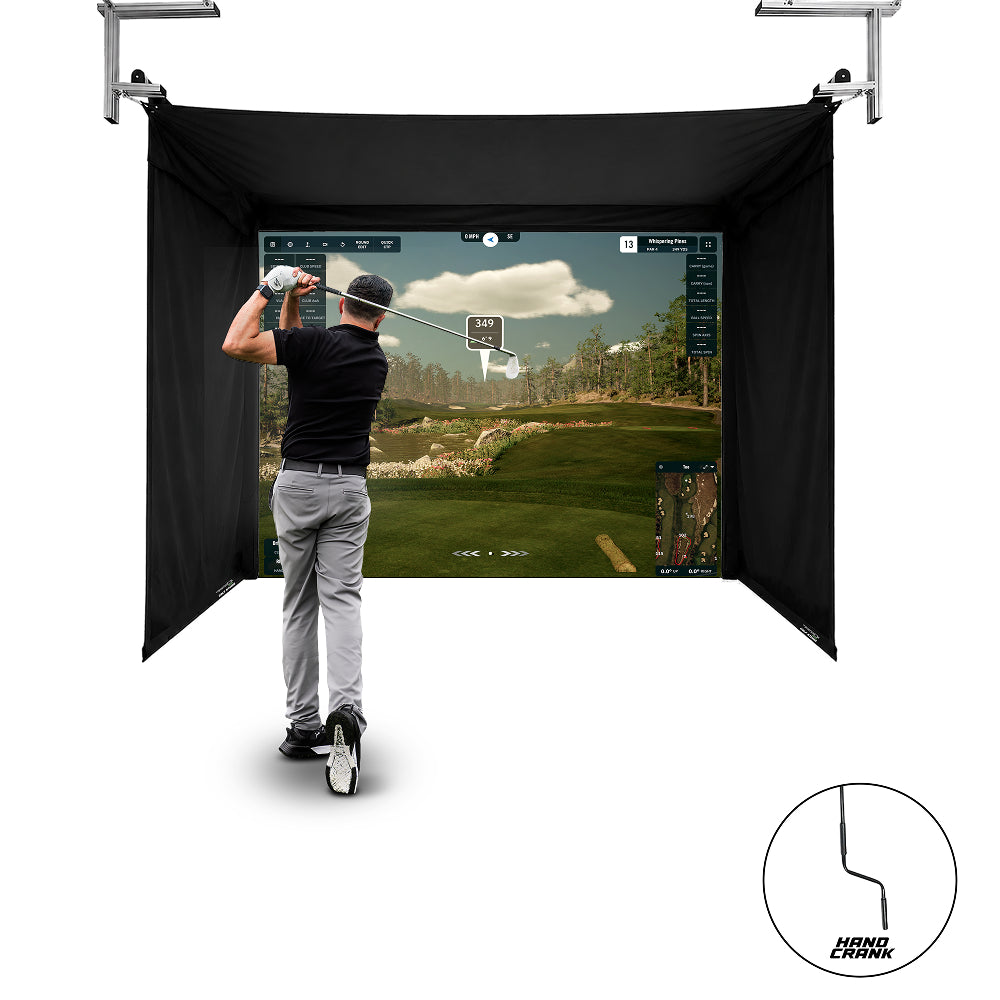

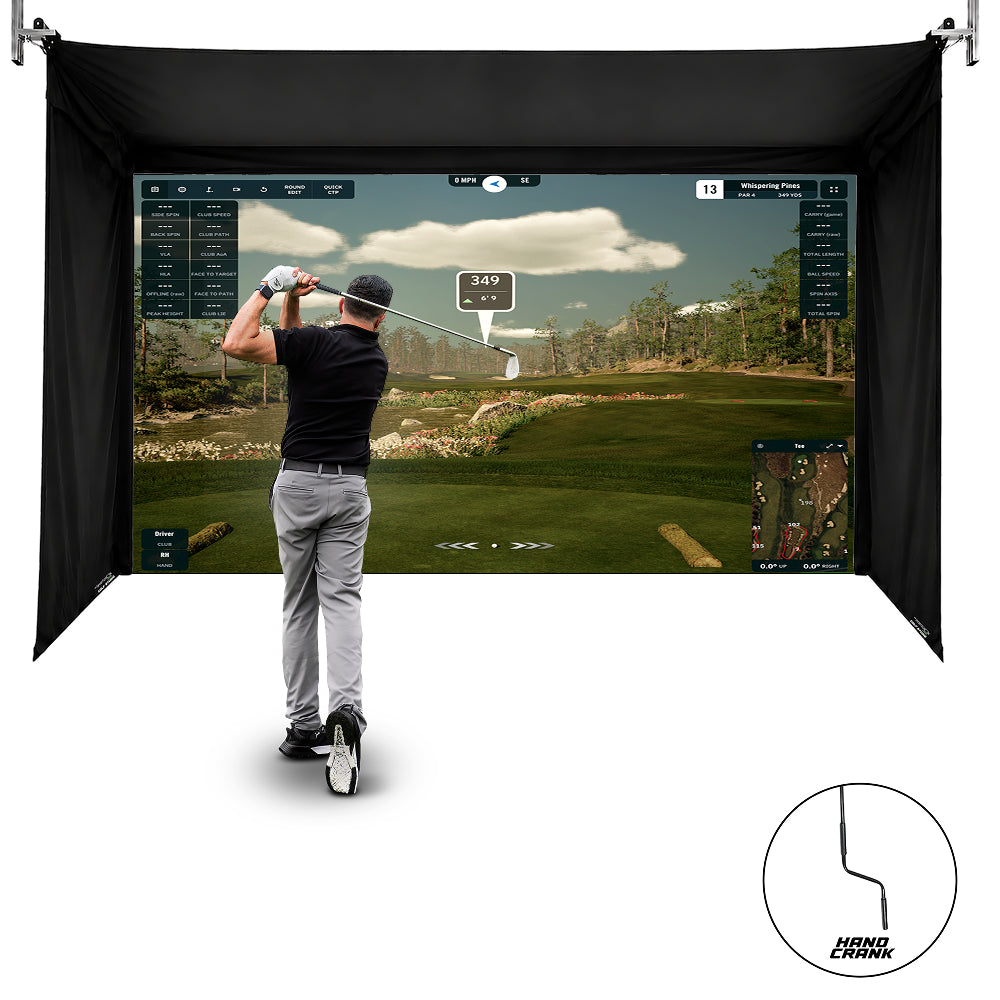

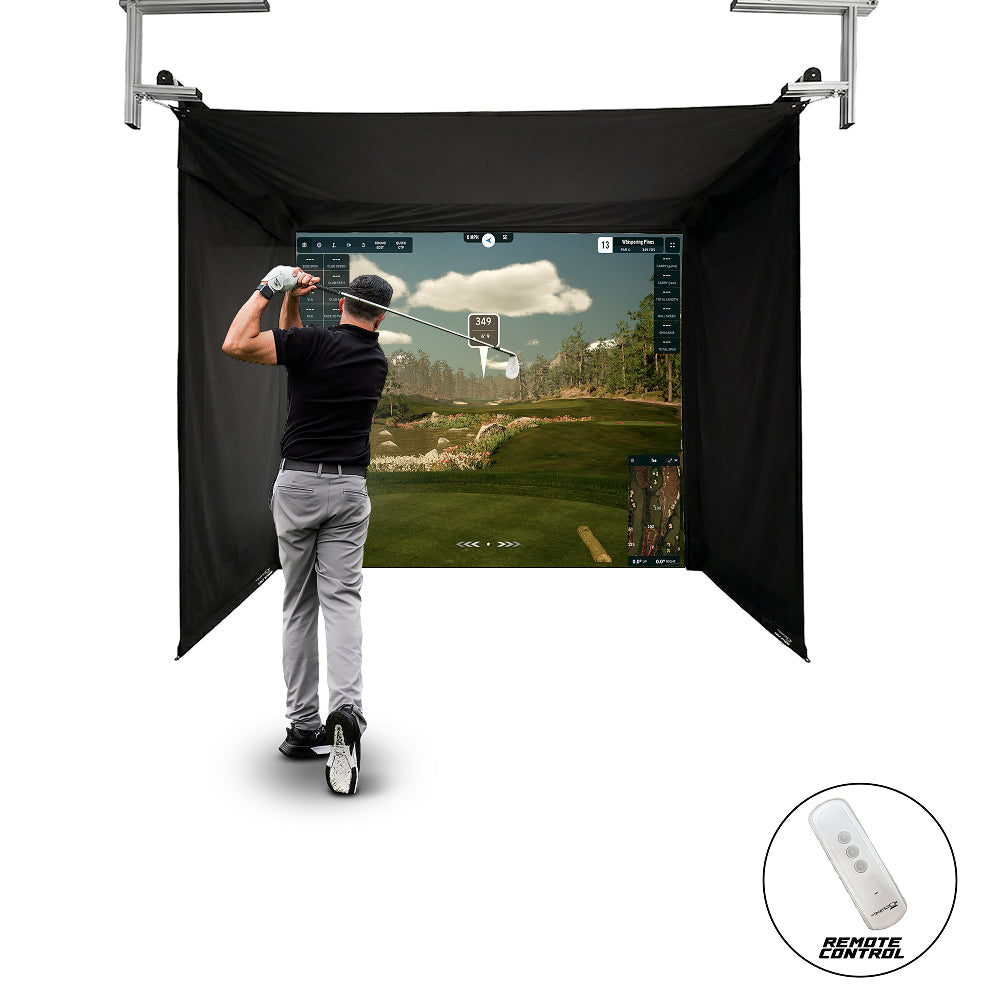

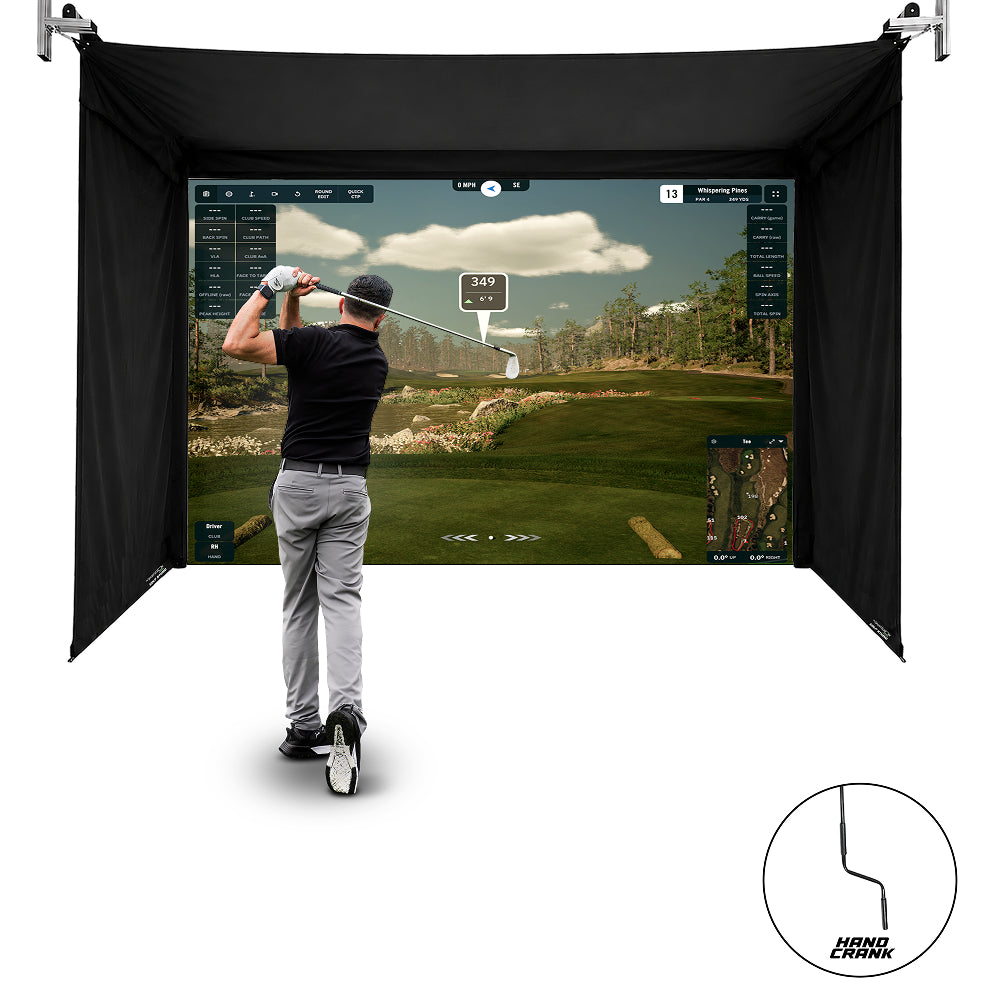

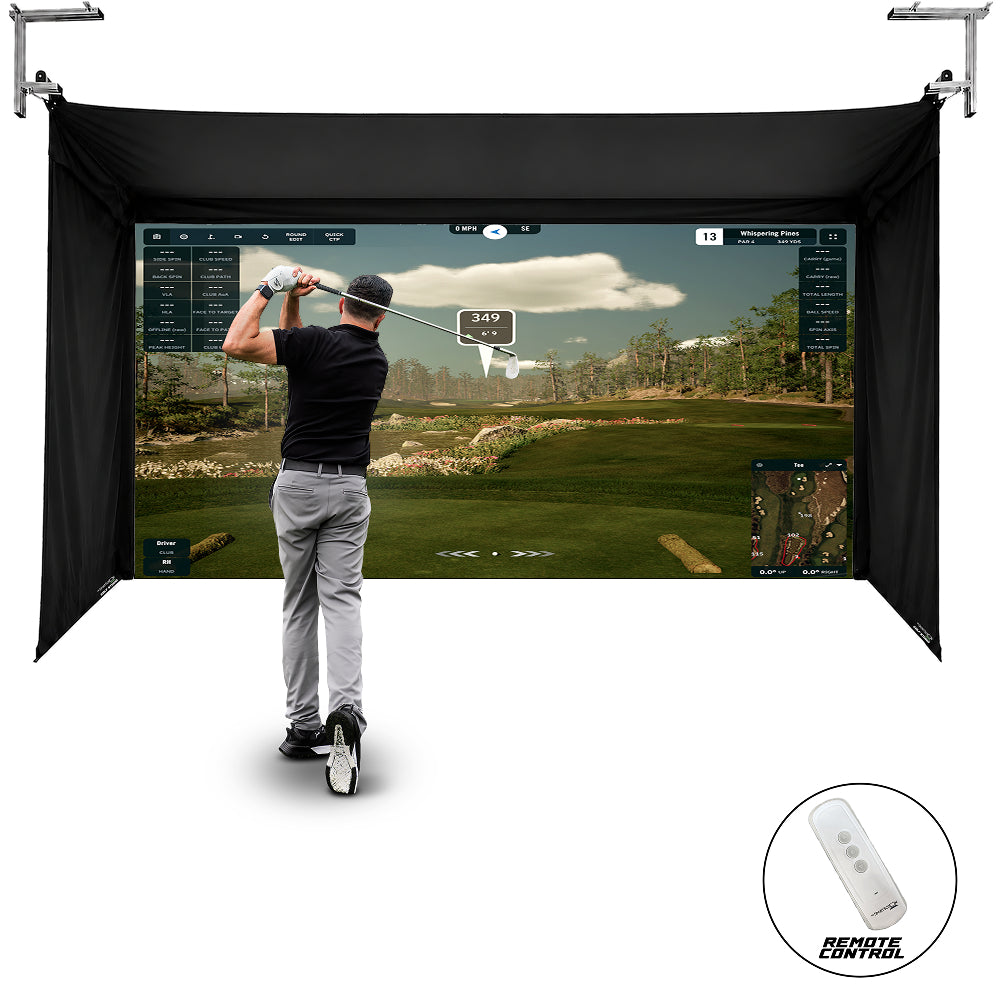

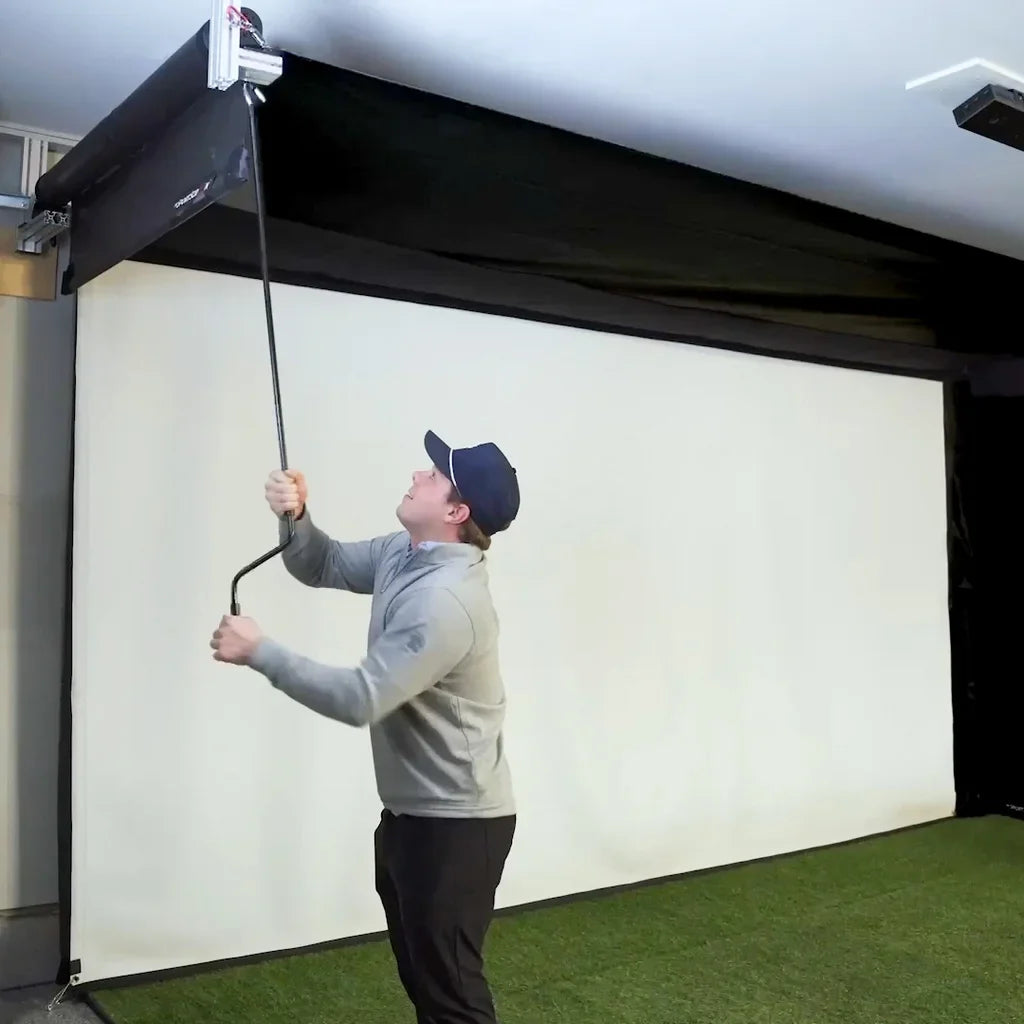

  • Hand crank or remote-control operation available
  • Clean, modern design that blends into your home
Retractable Golf Studio Design

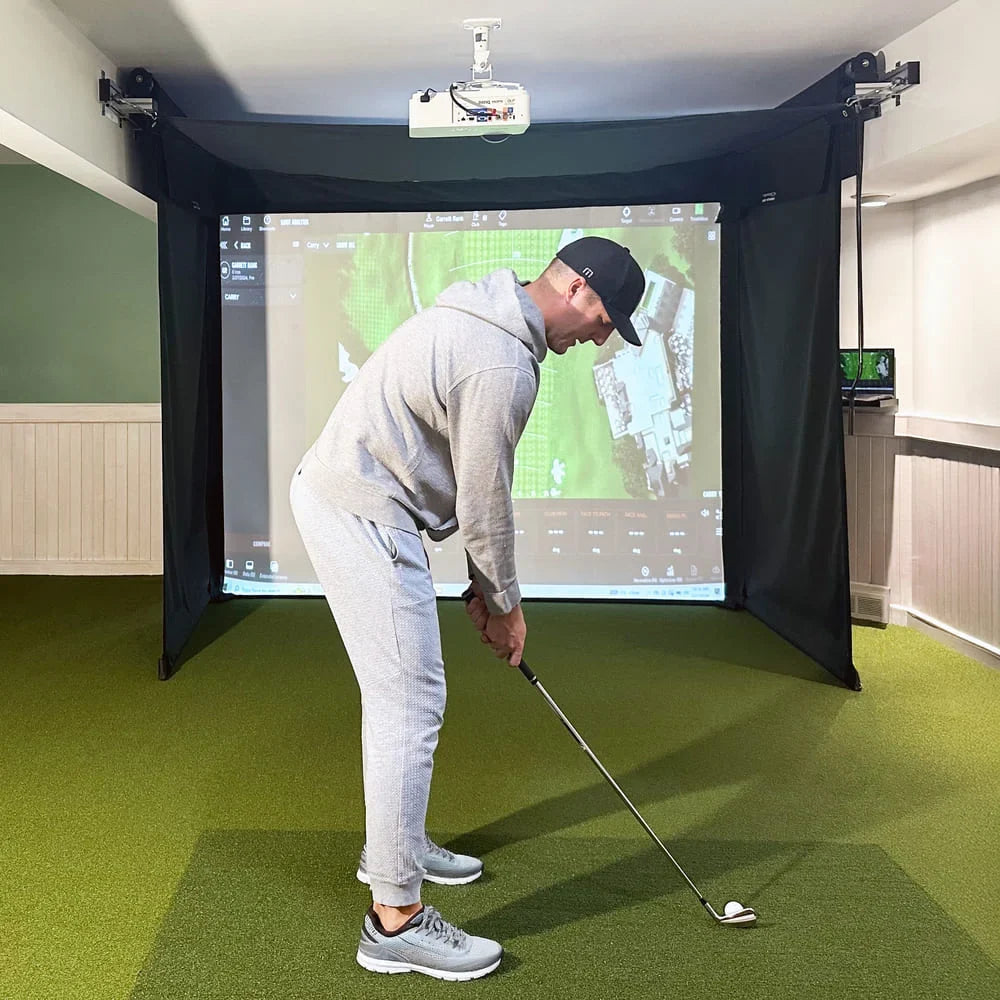

Complete All-In-One Enclosure

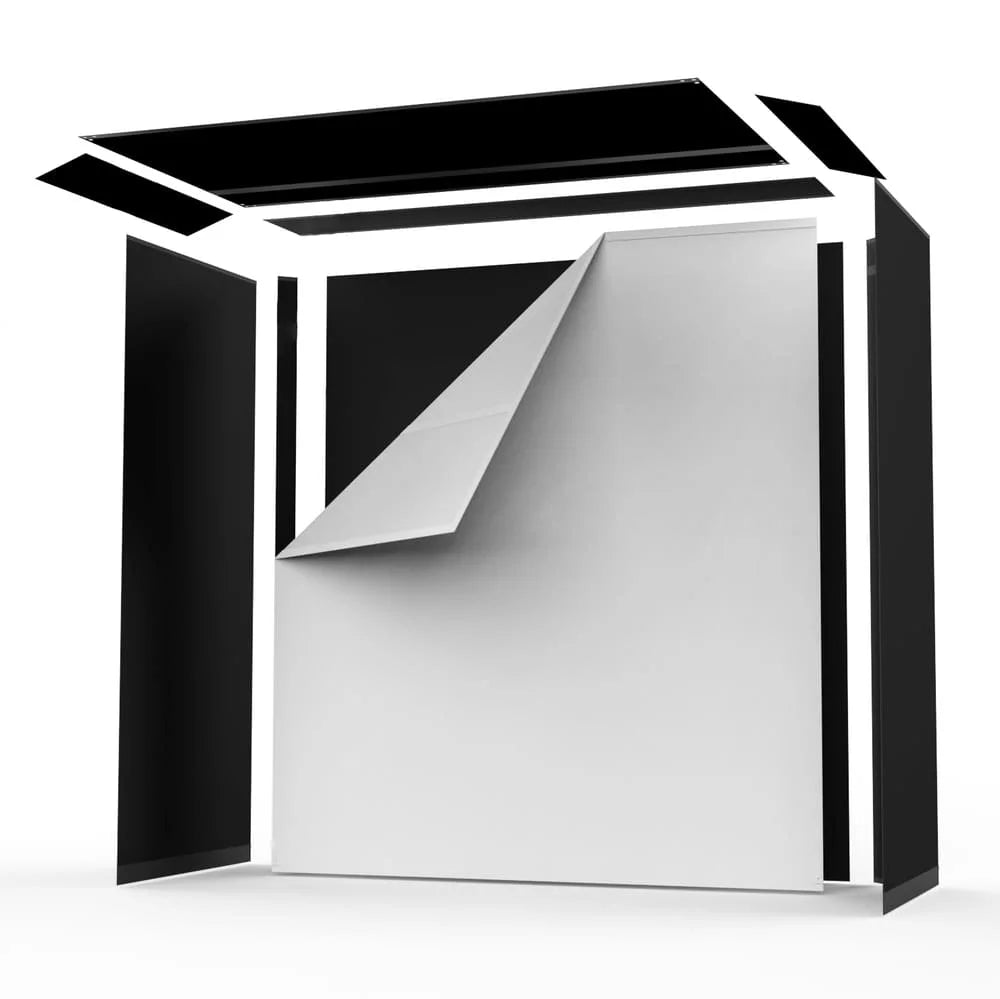

The Vanish Series provides everything needed to create a fully enclosed simulator bay straight out of the box. Side panels, ceiling protection and mounting hardware combine for a tidy, professional installation.
  • Includes side screens, ceiling panel and back protection
  • Premium impact screen included in the system
  • Wall and ceiling mounting brackets supplied
  • Designed for a clean, professional home simulator setup
Complete All-In-One Enclosure

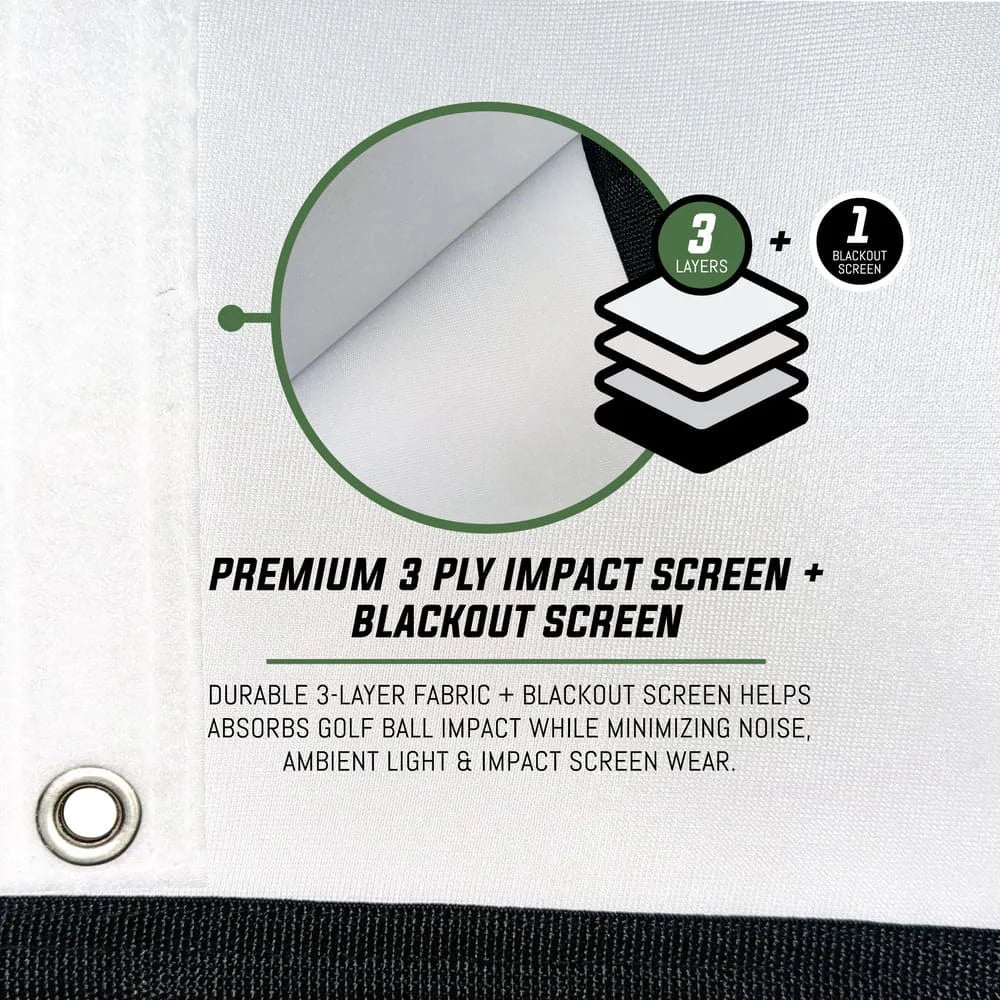

Premium Simulator Impact Screen

The high-quality 3-ply impact screen is designed to handle repeated golf shots while producing a bright, clear projected image. It supports popular projector aspect ratios for an excellent simulator display.
  • Durable 3-ply impact screen built for repeated ball strikes
  • Clear, bright projection surface for simulator visuals
  • Supports 4:3 and 16:9 projector aspect ratios
  • Designed for reliable simulator performance
Premium Simulator Impact Screen

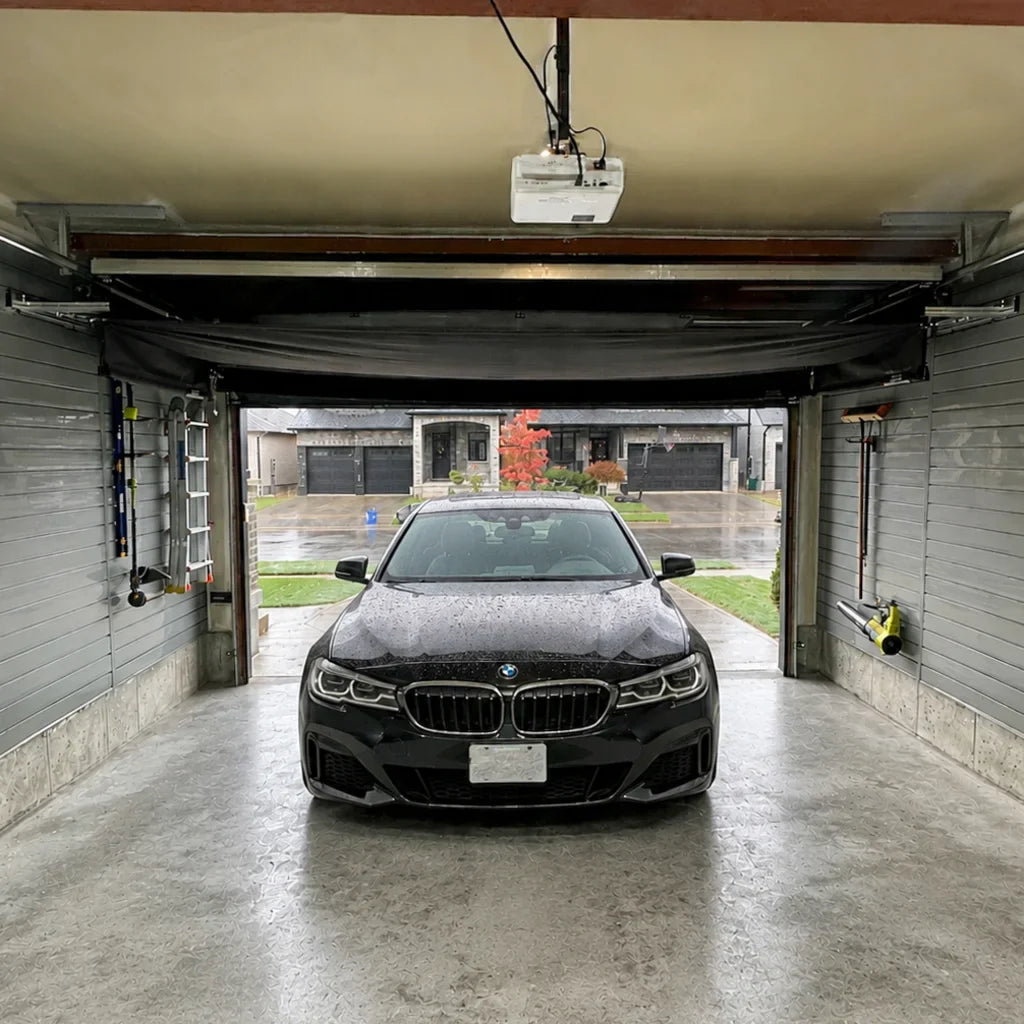

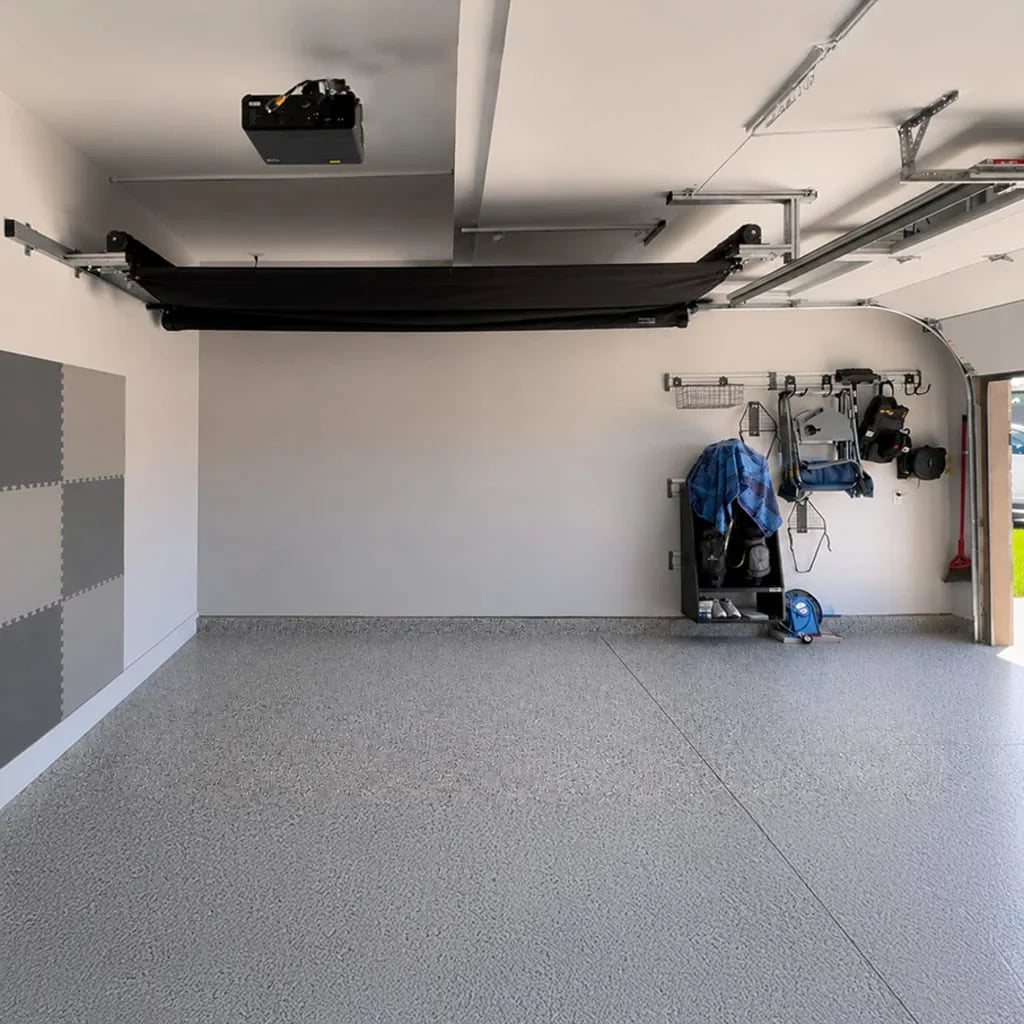

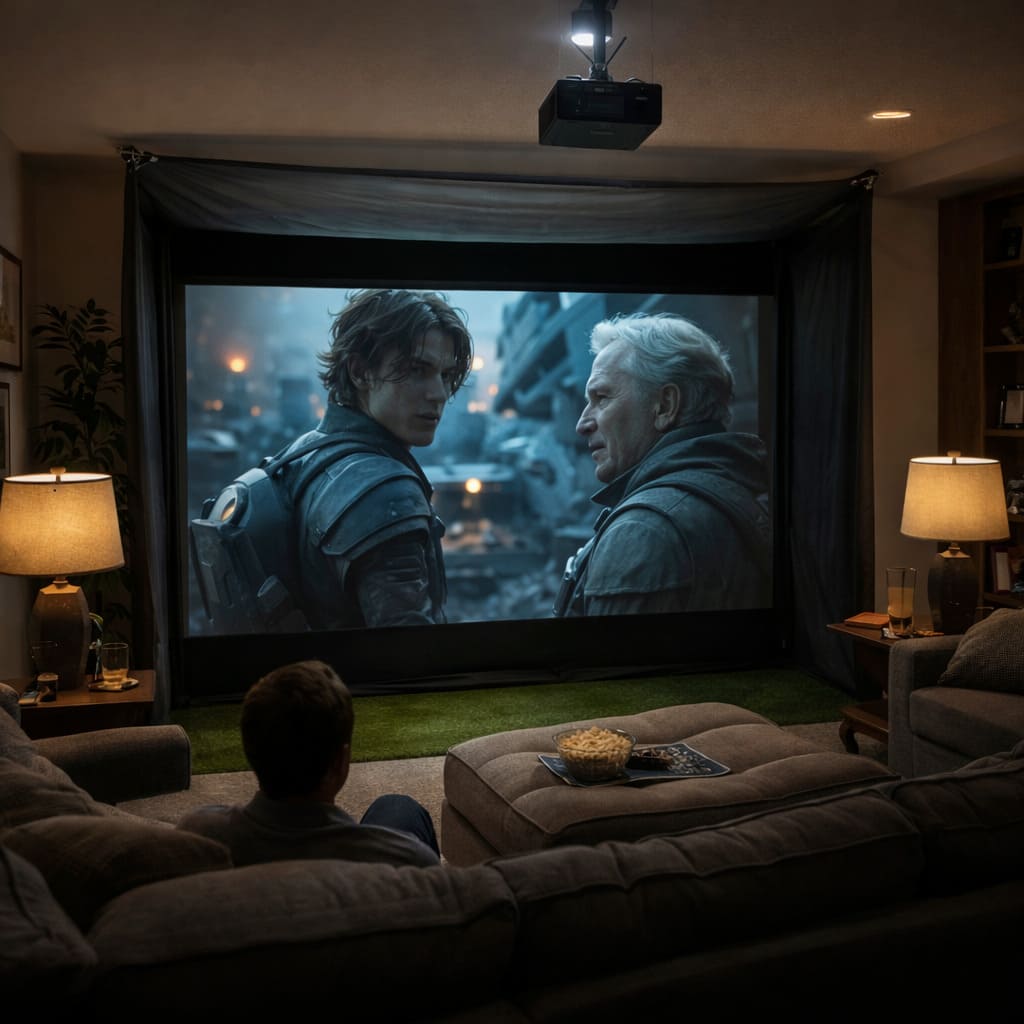

Create a Multi-Purpose Space

When the enclosure is rolled away, your simulator area can be used for other activities around the home. The Vanish Series makes it easy to turn the same room into a cinema, gaming area or workout space.
  • Converts from simulator bay to open room in seconds
  • Ideal for home cinema, gaming or VR setups
  • Perfect for multi-purpose rooms and family spaces
  • Enjoy golf practice without losing valuable living space
Create a Multi-Purpose Space
