Square Golf Omni Vanish Bundle

Square Golf Omni Vanish Bundle

£4,599.00 GBP
£0.00 GBP £4,599.00 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.
Model: Vanish 9
Retraction: Hand Crank

Add Hitting Mat

View all

Add Projector

View all
Bundle total: £4,599.00

Delivery Info

+

We offer delivery to many international countries with warehouses located in the USA, UK, Europe and China. For more details, please visit our Shipping policy page.

Setup Guide

+

SportScreen Vanish Series

Setting up the Vanish Sport Screen is a straightforward, step-by-step process that begins with preparation and mounting. First, unpack all components and check them against the contents list. Clear the chosen installation area, ensuring there is at least 30 cm of clearance behind the screen. Secure the universal mounting brackets to a solid structure, such as wall studs or ceiling joists. Once the brackets are fixed, assemble the aluminium roller tubes and fit these assemblies into the mounted brackets.

Next, attach the screens and configure the system. Fix the main screen, along with any optional side screens or ceiling baffles, to their respective rollers using the integrated hook-and-loop (Velcro-style) strips. For the motorised version, connect the power lead to a standard 110 V socket. The final key step is to pair the remote control with the motor and set the upper and lower stop positions so the screen automatically halts at the desired height. Once everything is connected and the limits are set, test the system thoroughly to confirm smooth, even operation.

Square Golf Omni Launch Monitor

To get started with the Square Golf Omni, first power on the device and connect it to the Square Golf app on your phone or tablet. Position the monitor on its tripod just beside your golf ball, ensuring it is aligned with the hitting area. Place the ball within the designated hitting zone until the device indicates it’s ready (solid green light). Attach the provided club stickers—one on the club face and one near the bottom of the shaft—to enable full club data tracking. Once set, you’re ready to hit. After your session, simply recharge the device using the built-in battery for up to 6 hours of use.

Specification

+

SportScreen Vanish Series

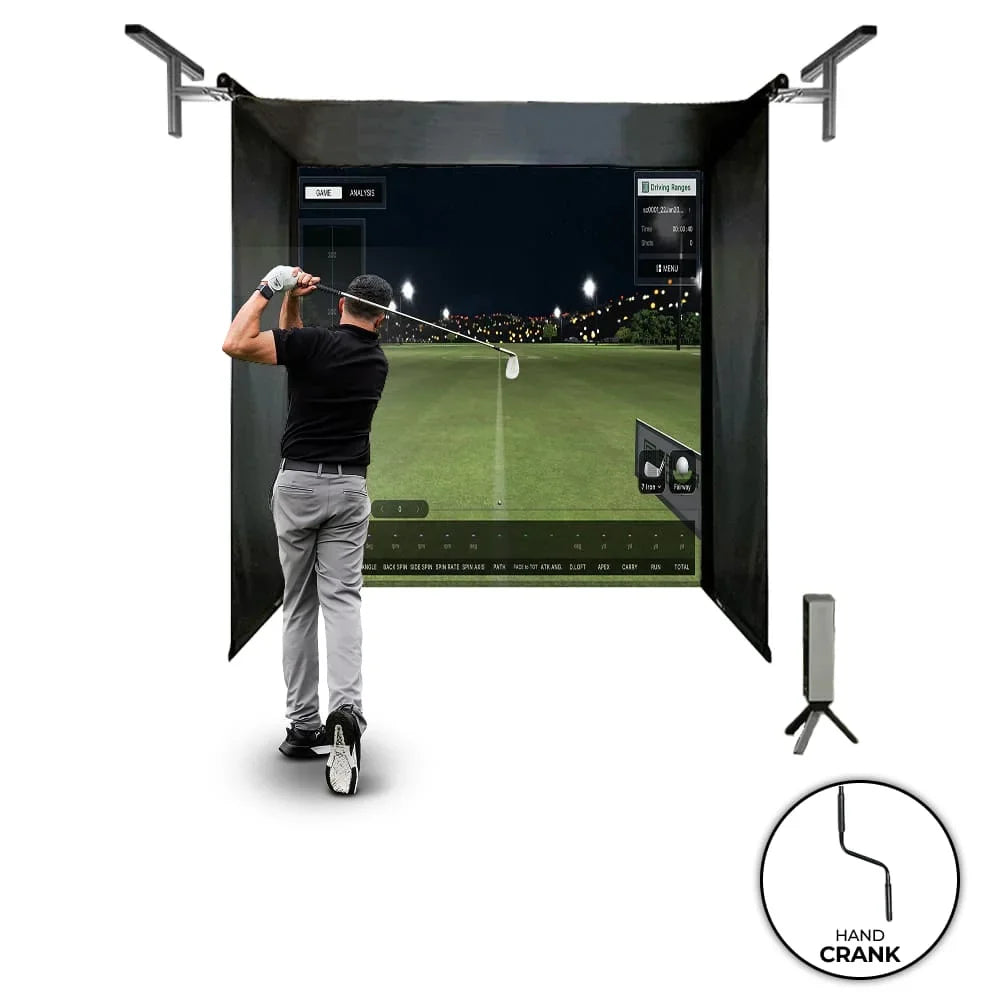

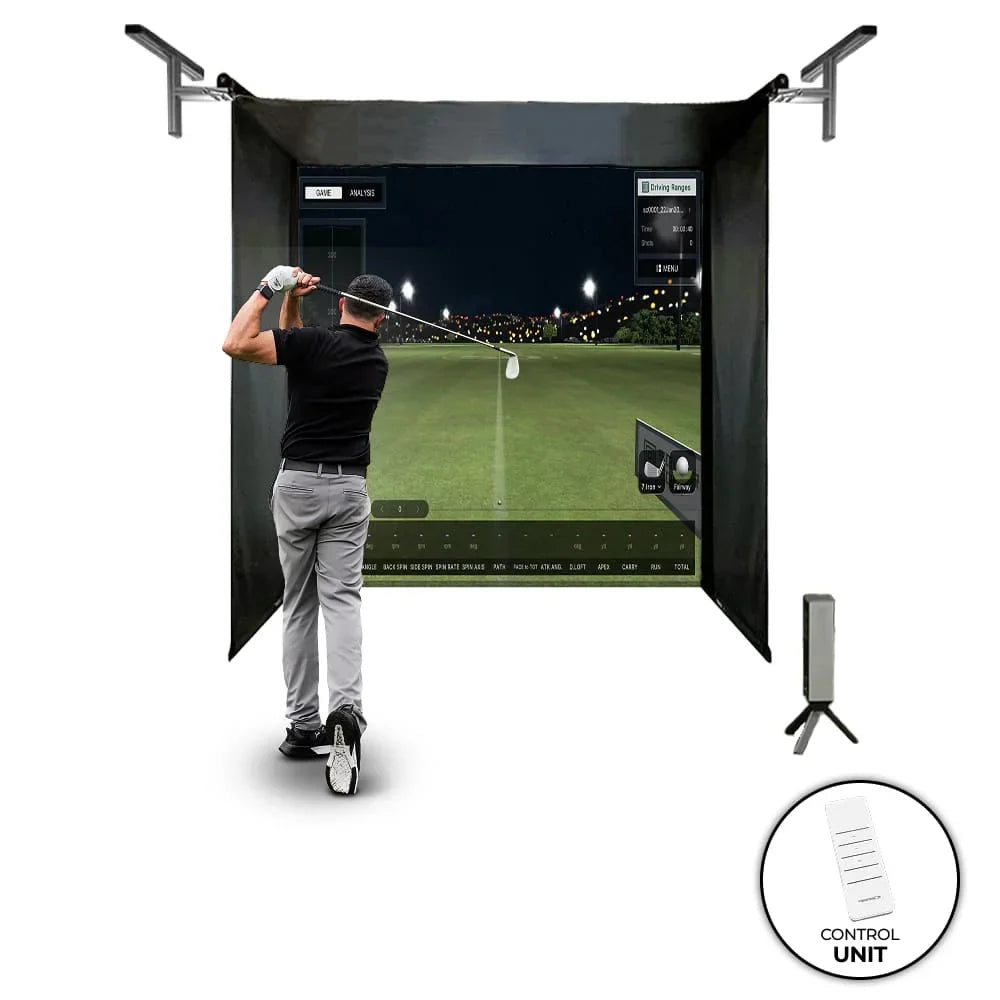

Vanish 9
• Width - 2.3 m (7"9' ft)
• Min Height - Adjustable
• Max Height - 2.6 m (8"6' ft)
• Depth - 1.5m (5"0' ft)
• Screen Ratio 1:1

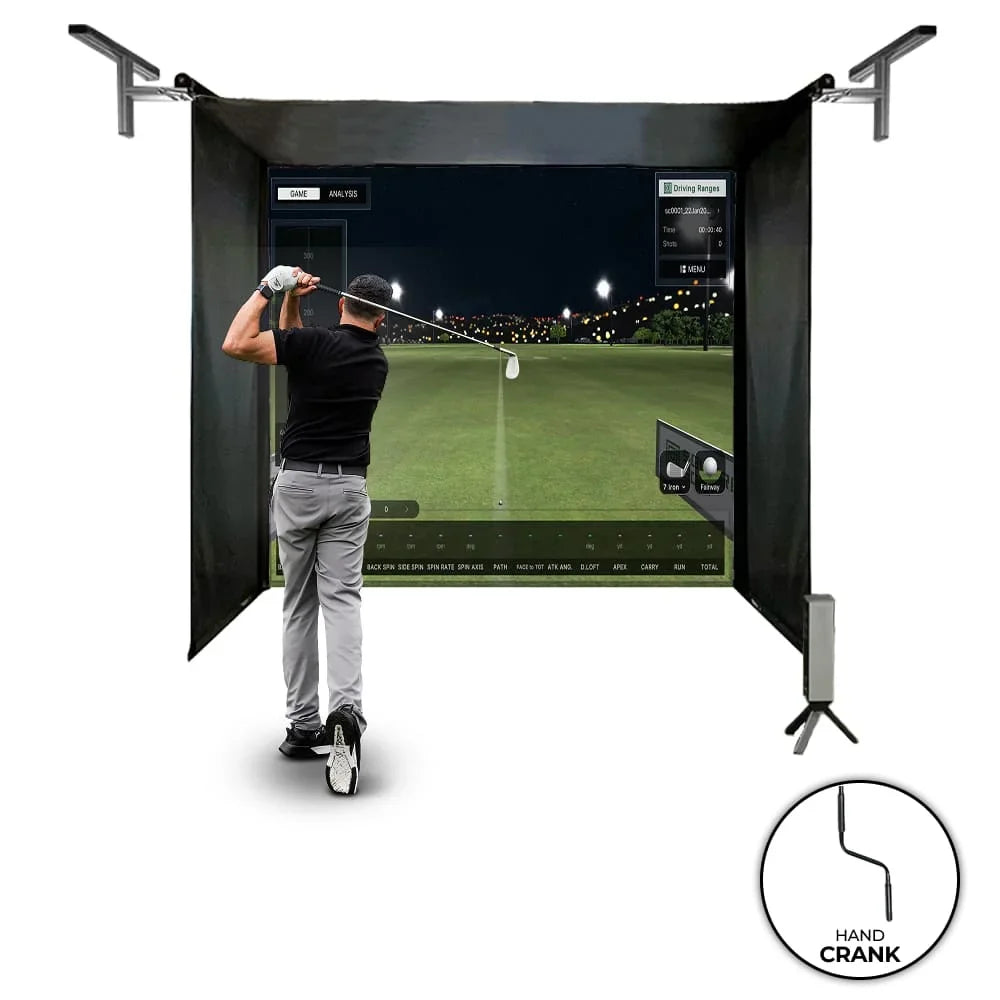

Vanish 11
• Width - 3.1 m (10"3' ft)
• Min Height - Adjustable
• Max Height - 2.6 m (8"6' ft)
• Depth - 1.5m (5"0' ft)
• Screen Ratio 4:3

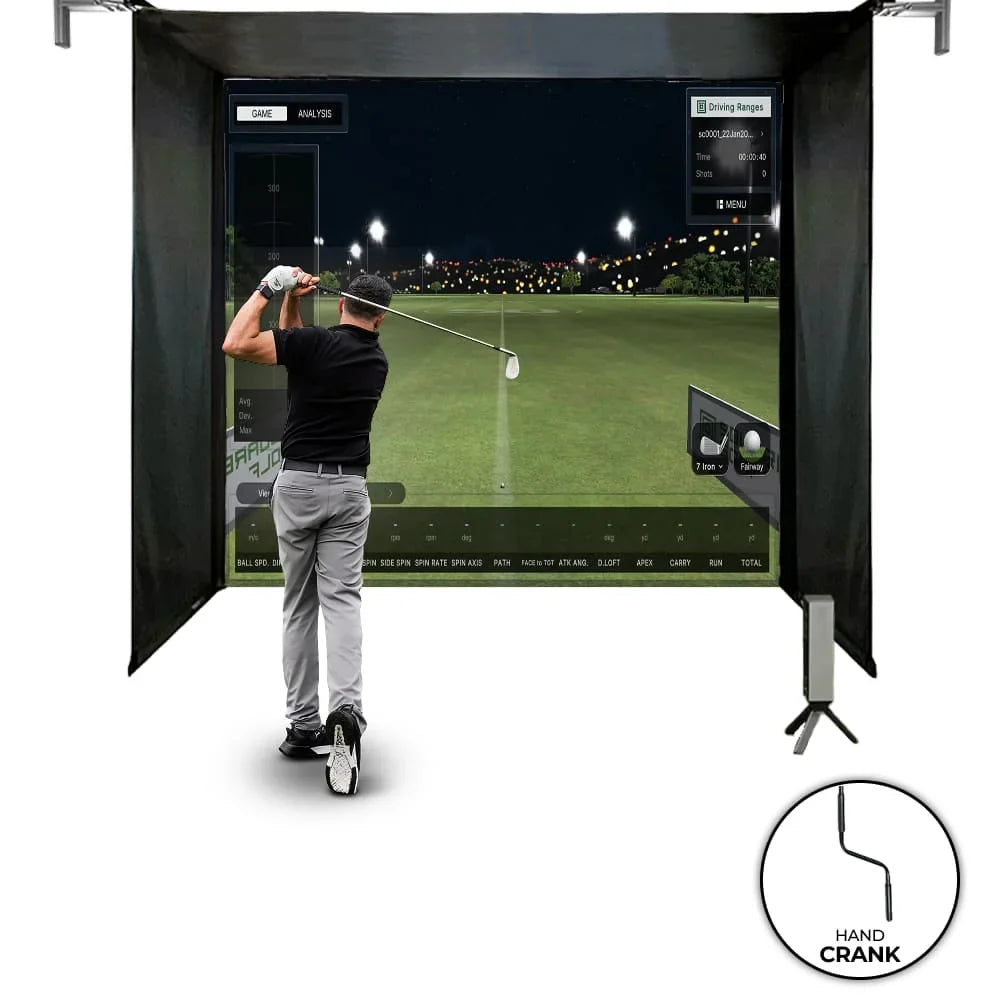

Vanish 13H
• Width - 3.7 m (12"3' ft)
• Min Height - Adjustable
• Max Height - 3 m (9"11' ft)
• Depth - 1.5m (5"0' ft)
• Screen Ratio 4:3

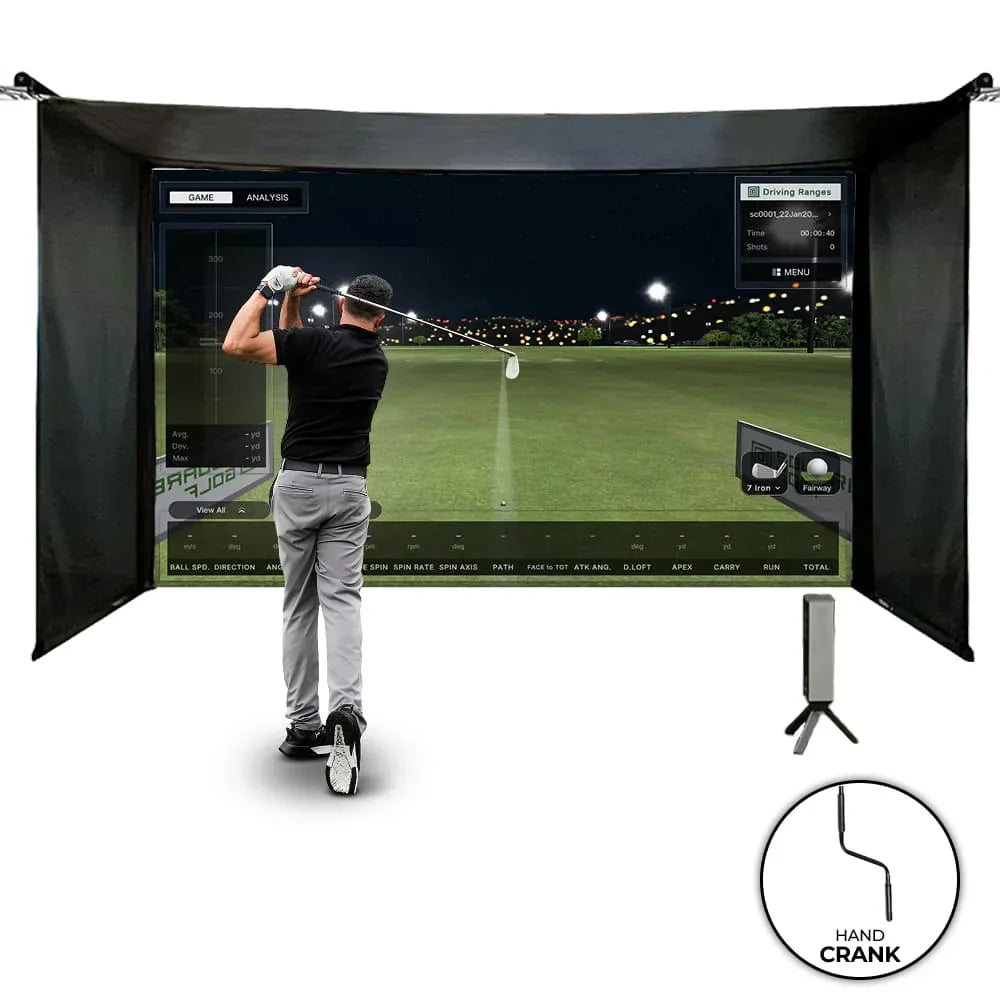

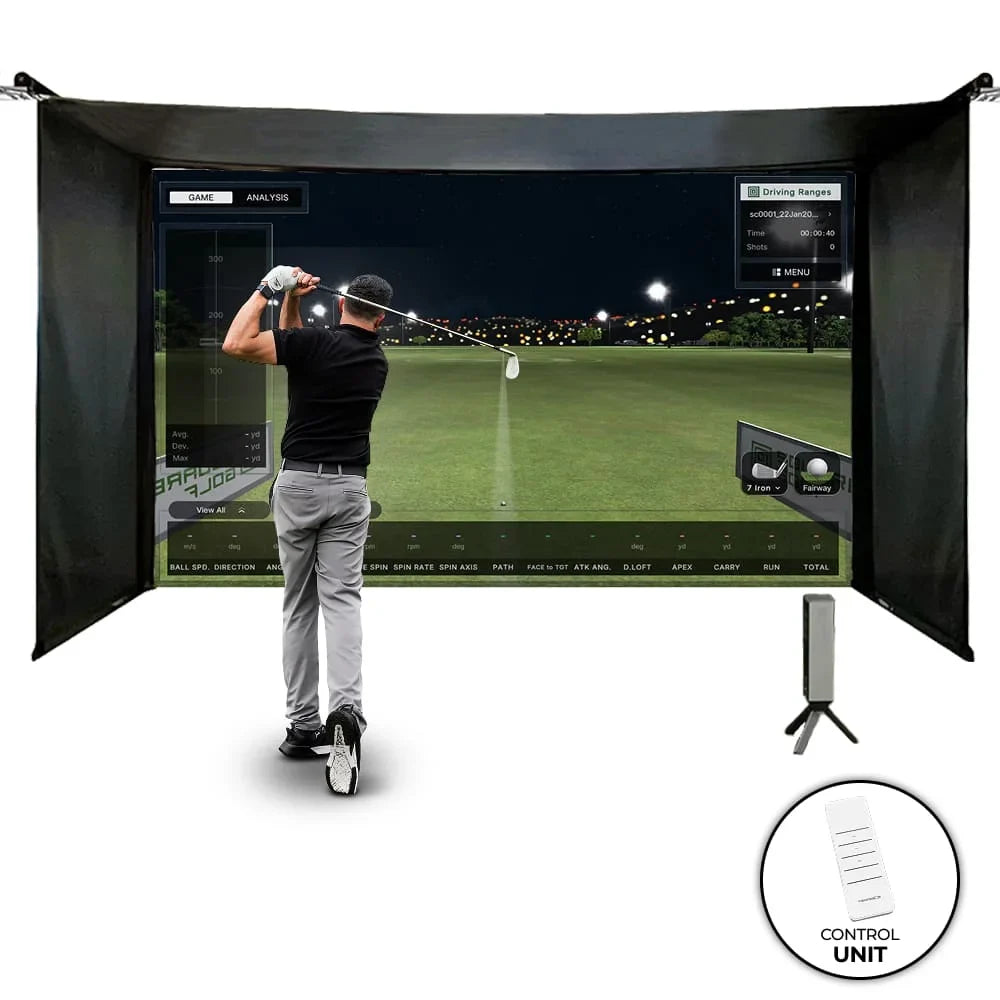

Vanish 16
• Width - 4.7 m (15"6' ft)
• Min Height - Adjustable
• Max Height - 2.6 m (8"6' ft)
• Depth - 1.5m (5"0' ft)
• Screen Ratio 16:9

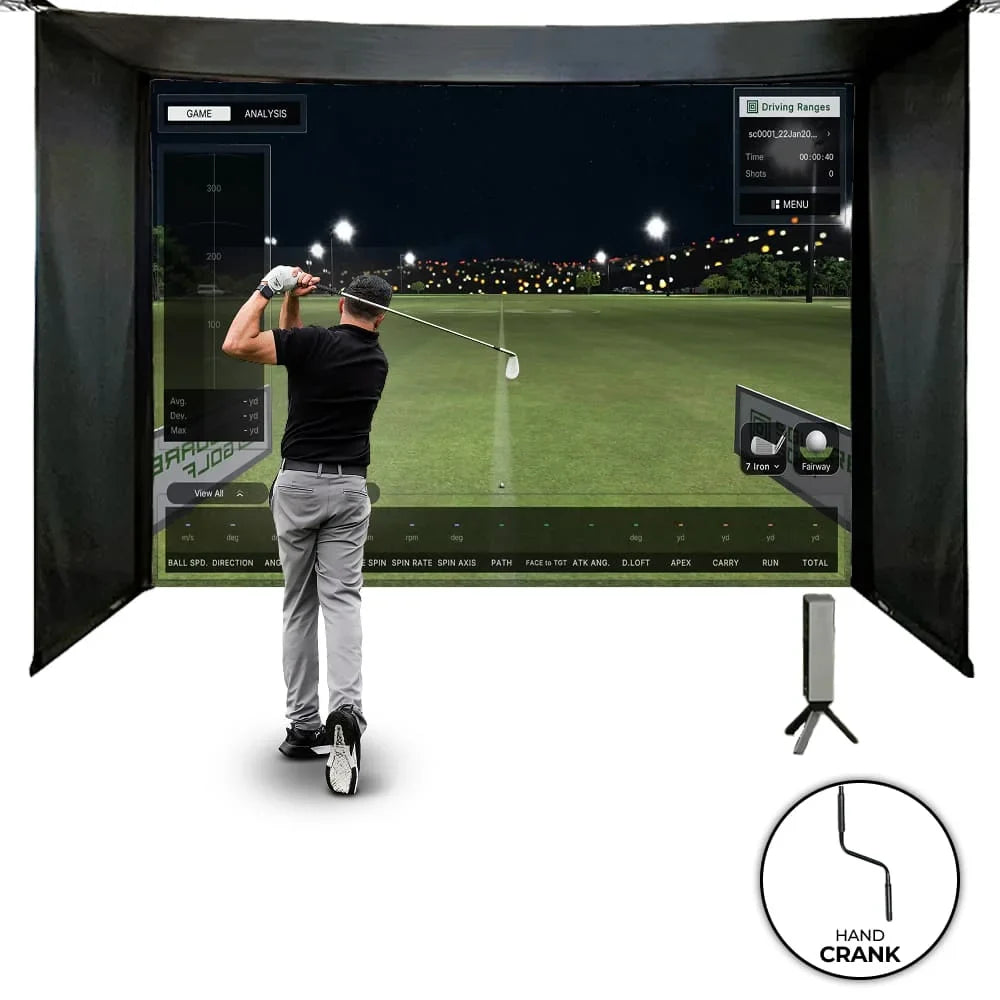

Vanish 16H
• Width - 4.7 m (15"6' ft)
• Min Height - Adjustable
• Max Height - 3 m (9"11' ft)
• Depth - 1.5m (5"0' ft)
• Screen Ratio 16:9

Please leave at least 30cm behind and 20cm to the side of the enclosure.

Square Golf Omni Launch Monitor

  • Indoor & outdoor golf launch monitor
  • 4 x High-speed camera with built-in infrared (IR) LEDs
  • Removable lithium-ion battery
  • Dimensions Assembled 70 (w) x 60 (d) x 360 (h) mm
  • Tripod 165 (w) x 185 (d) x 120 (h) mm
  • Battery Life: Up to 6 hours continuous use
  • Available for: iOS 13+, Android 10+, and Windows 10/11
  • Modes: Driving Range, Data Mode, Closest to Pin, Putting Practice, Game
  • Third-Party Integration: GSPRO, E6 & Awsome Golf
View full details

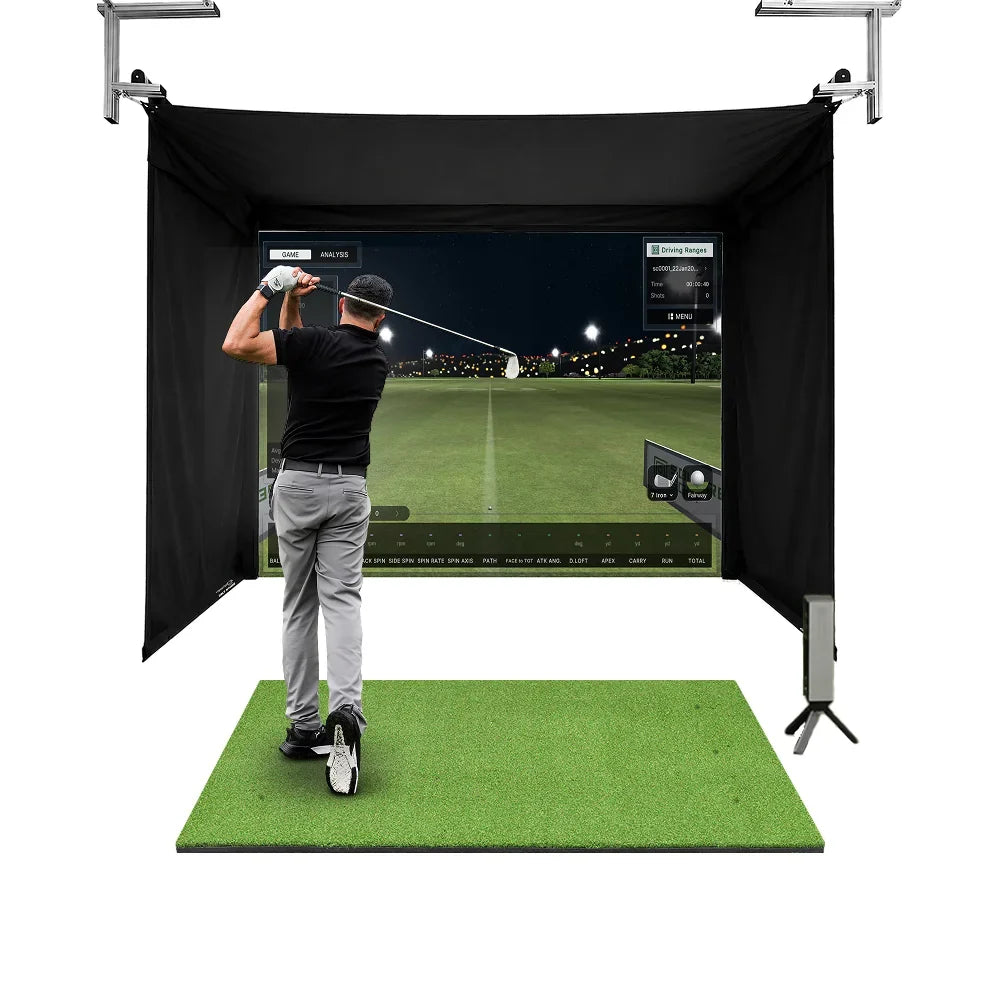

Square Golf Omni Vanish Bundle

The Square Golf Omni Launch Monitor and SportScreen Vanish Series Golf Enclosure create a tour-level home golf simulator that rolls away when not in use. Track accurate ball and club data with instant feedback, realistic practice, and no marked balls needed. Perfect for golfers who want to improve at home without giving up valuable living space.

Square Golf Omni Launch Monitor

The Square Golf Omni Launch Monitor combines advanced tracking technology with built-in gameplay and flexible game modes for a complete golfing experience. Designed for both indoor simulators and outdoor practice, it delivers accurate shot data, instant feedback, and multiple ways to play.
  • Tour-level accuracy with four infrared cameras capturing ball and club data
  • Built-in display and larger hitting zone using real golf balls with no markings
  • Reliable performance for both indoor and outdoor use
  • Free built-in software with 3rd party software compatibility
Square Golf Omni Launch Monitor

Retractable Golf Studio Design

The Vanish Series enclosure features a sleek retractable system that allows you to roll the screen away when not in use. In seconds, your simulator space can return to a normal room, keeping your home clean and flexible.
  • Retractable screen rolls away neatly when not in use
  • Quickly switch between golf simulator and open room
  • Hand crank or remote-control operation available
  • Clean, modern design that blends into your home
Retractable Golf Studio Design

Complete All-In-One Enclosure

The Vanish Series provides everything needed to create a fully enclosed simulator bay straight out of the box. Side panels, ceiling protection and mounting hardware combine for a tidy, professional installation.
  • Includes side screens, ceiling panel and back protection
  • Premium impact screen included in the system
  • Wall and ceiling mounting brackets supplied
  • Designed for a clean, professional home simulator setup
Complete All-In-One Enclosure

Premium Impact Screen & Multi-Purpose Space

The durable 3-ply impact screen handles repeated golf shots while delivering a bright, clear projected image. When rolled away, the Vanish Series helps turn your simulator area back into a cinema, gaming, workout or family space.
  • Durable 3-ply impact screen built for repeated ball strikes
  • Clear, bright projection surface for simulator visuals
  • Rolls away quickly to restore valuable living space
  • Ideal for home cinema, gaming, VR or workout setups
Premium Impact Screen & Multi-Purpose Space
